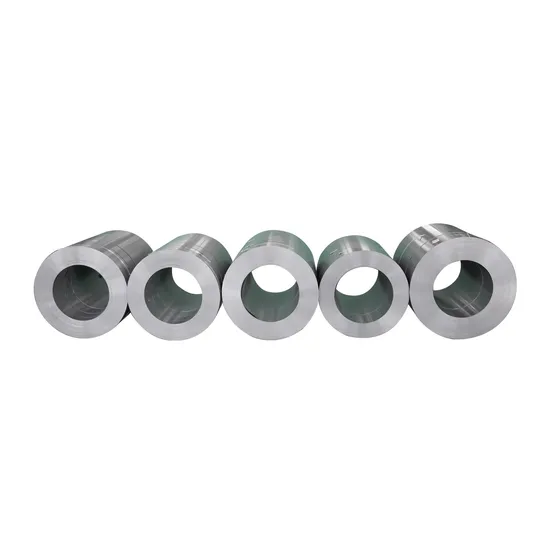

Customized High-Grade Baosteel B20R070 Grade CRGO Electrical Silicon Steel Sheet Slit Coil

Product Description

Product Description Oriented silicon steel is a low-carbon silicon iron alloy material with a silicon content of 0.5%~4.5%, which has characteristics such as high permeability(which can reduce Joule loss in power equipment, improve efficiency and energy-saving effects), lower iron loss and high resistance coefficient.Raw material:CRGO silicon steel from Baosteel and WISCO.

Type	Grade	Width	Max Core Loss@P1.7T/50Hz	Lamination Factor(%)	Min Induction@B800
Common Type	23Q110	35-1200mm	1.10w/kg	97.2	1.82T
	23Q120		1.20w/kg	97.2	1.82T
	27Q120		1.20w/kg	97.5	1.82T
	30G120		1.20w/kg	98	1.82T
High Induction Type	B20P085	35-1200mm	0.85w/kg	97	1.86T
	B23P085		0.85w/kg	97.2	1.88T
	B23P090		0.90w/kg	97.2	1.88T
	B23P095		0.95w/kg	97.2	1.88T
	B23P100		1.00w/kg	97.2	1.88T
	B27P095		0.95w/kg	97.5	1.89T
	B27P100		1.00w/kg	97.5	1.89T
	B30P120		1.20w/kg	98	1.89T
Domain Refined High Induction Type(Laser)	B20R070	35-1200mm	0.70w/kg	97	1.86T
	B23R085		0.85w/kg	97.2	1.88T
	B27RK085		0.85w/kg	97.5	1.89T

Magnetic properties
Low core loss,high permeability and excellent application performance.
Thickness tolerance
The good thickness tolerance and high lamination factor.
Processing property
Suitable for punching and cutting with excellent dimension tolerance.
Insulation coating
Small color deviation,good adhesiveness and excellent resistance to heating and corrosion with high insulation coating resistance. Comply with including EU RoHS and REACH regulations.
Company Profile
Projects
Certificates
Packaging & Shipping
FAQ1.Which products can we provide?
CRGO mother coils,slit coils,transformer lamination,OEM transformer core.
2. Who are we?
We are pioneer of CRGO silicon steel products in china since 1988,exclusive user of bao-steel,have established joint lab with bao-steel.
3.How can we guarantee quality?
We produce according to ISO9001:2015 Standard.Before placing order,our engineer will calculate carefully.After production,we will test it before sending out.
4. why should you buy from us not from other suppliers?
We have over 30years experience of producing transformer core, assembled with advanced Germany slitted cutting system,Georg 800 cross cutting E-stack machine.Our Annual transformer core production capacity is over 100,000 tons.
More for you to chooseSlit coil,Transformer lamination,Assembled core
