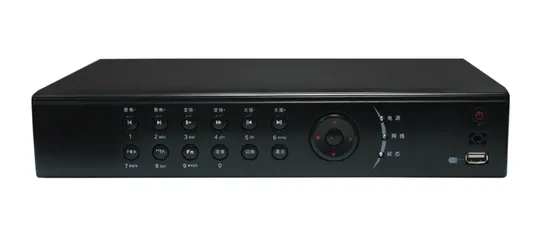

8-Channels Network DVR (SHJ-5800C)

8-Channels Network DVR (SHJ-5800C)

US$750.00 10 Pieces (MOQ)

Basic Info.

Model NO.
SHJ-5800C
Compressed Format
H.264
Operating System
Windows
Application
Server PC DVR
Interface Type
BNC/VGA
Video Input/Output
8 Channel
Audio Input/Output
8 Channel
Remote Control
Without Remote Control
Transport Package
Strong Cartons
Specification
CE, ISO, RoHS
Trademark
OEM
Origin
China
HS Code
8529904900
Production Capacity
500PCS/Month

Product Description

8-Channels Network DVR
Features:
1. Embedded Linux OS
2. Standard H. 264 compression
3.8 Ch. Video input, D1 real-time recording
4.8 Ch. Audio input
5.8 Ch. Alarm input and 2 Ch. Alarm output
6. Support VGA, CVBS output
7.8 Ch. Synchronous playback
8. Support mobile phone viewer (Windows Mobile/Symbian/iPhone/ Android/BlackBerry)
9. Embedded Web Server easy for remote monitoring.
10.1 SATA interfaces, support TB HDD
11. Support multiple DDNS (Oray, 3322, DynDNS)
12. IPTZ control by mouse and Controller
13.2 USB interfaces, support mouse and external storage device
14. User Friendly GUI, front panel, remote control and mouse
15. Two-way audio (Support BNC interface and 3.5mm interface)
Main Processor High Performance Embedded Microprocessor
Operation System Embedded Linux OS
Signal System PAL/NTSC
System Resource Recording, Playback, Remote Access
Operation Interface Mouse, Front Panel, Remote Control
Video Split 1 / 4 /8 /9 Split Display
Video Resolution D1
Video Playback Resolution CIF
Bit rate Control Dual stream
Image Control 6 Levels
Recording Speed PAL: 25fps/channel, NTSC: 30fps/channel
Motion Detection Configurable detection areas (22 × 18 blocks) and Sensitivity
Audio Compression G.711
Recording Priority Manual > Alarm > Motion Detection > Schedule
Local Playback 8 channel synchronous playback
Playback Search Date, Time, Event, Channel
Video Storage Local HDD
Backup Mode USB
Video Input 8 channel BNC
Video Output 1 channel BNC, 1 channel VGA (800×600 1024×768 optional)
Audio Input 8 channel RCA
Two-way audio Input 1 channel RCA
Audio Output 1 channel RCA
Alarm Input 8 channel
Alarm Output 2 channel relay output (30V DC 2A, 125V AC 1A)
Ethernet Interface RJ45 10M /100M Base-TX
PTZ Interface 1 x RS485
USB Interface 2 x USB2.0
HDD/SATA Interface 1 x SATA
Power Supply DC12V±10%
Power Consumption <15W (HDD not included)
Working Temperature -10 ºC~ +55ºC
Working Humidity 10% - 90% RH
Atmosphere Pressure 86kpa -106kpa
Dimensions 314(L) x 230(W) x 57(H)mm
Weight 1.8Kg (HDD not included)
Mounting Desktop Mount
