Concrete 1.7m3 Mini Self Loading Concrete Mixer Truck with Front Loading Shovel (SL1.7R)
| US$28,000.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
SL1.7R
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
4.8m3/H
Feeding Height
1500mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White
Truck Chassis Model
Silon Brand
Type of Drive
4WD
Engine Model
Chinese Wuxi Brand
Rated Power
48kw
Drum Mixing Volume
1.7m3
Gross Weight
3200kg
Concret Ouput
1.2 M3
Front Loading Shovel Capacity
270L
Charge Speed
3 M3/Min
Dimension
5000*1900*2600mm
Transport Package
Nude
Specification
CE, ROHS, SGS, CCC, ISO,
Trademark
SILON
Origin
Luoyang, China
HS Code
8705400000
Production Capacity
500 Units/Month
Product Description
Silon Concrte Feeding mixter Truck Features
1.Mixing volume:1.7cbm
2.Engine:48KW EU-III
3.Chassis:Silon 4x4 WD
4.Discharge speed:4.8cbm/h
5.Rotational speed: 0~14r/min
6.Feed rate: ≥3m³/min
7.Rest rate: <0.7%
8. Imported Hydraulic Systerm/Reducer motor
9. Low Oil Consumption with good economice
10. Concrte Mixter truck: SILON 1.2M3 /1.7M3 /2.0M3 /2.6M3 /4.0M3
Techncial Parameters
| Drum Capacity | 1.7m3 |
| Discharing Height | 1.5m |
| Production Capacity | 1.2m3 /cans 4.8m3/h |
| Engine | Chinese Sida / Chinese Yunnei |
| Transmmsion | Turquo Converter, 4WD |
| Walking Speed | Low Speed :2km/h High Speed: 20km/h |
| Cabin | Lef-Hand Drive ,Rops, Front Loading Shovle |
| Hydraulic System | Chinese Hydrulic System |
| Discharing Direction | 180 Degree Rotation (90 Degree Each) |
| Operation Lever | Electrionilly Control Four-Speed Joystick |
| Bucket Capacity | 270L |
| Chute | Hydraulic adjustable angle, in order to increase Discharing Length |
| Water Supplyer System | Hydraulic DriveN Auto-Priming Pump, washing vehicel with high pressure water pump,Electrionilly Control Auto-Priming Pump, Sprinker 100L/min |
| Brakes | Air Brake Dual Independence Circurs |
| Tyre | 12-16.5 |
| Power System | 24V |
| Fuel Tanker | 35L |
| Hydraulic Oil Tanker | 120L |
| Weight | 3200kg |
| Dimension | 5000X1900X2600mm |

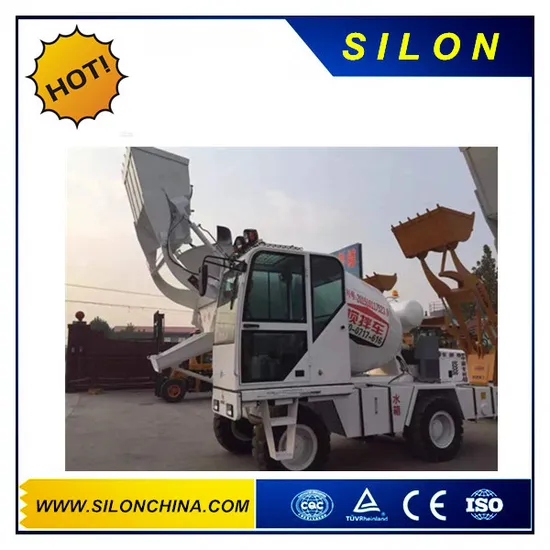

Detailes Photo of the mini Concrete Feeding Mixer Truck ( SL1.7R)
Contact Information
Silon - LuoYang Silon Industrial Co.,Ltd
Tel: 86-379-62270038
Cell Phone: 86-15837919532
Website: silonmachinery.en.made-in-china.com
