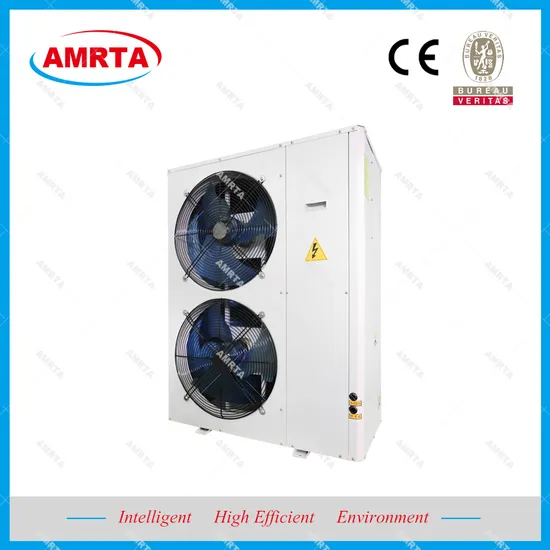

-25 ~ 46degreec DC Inverter Evi Low Temperature Air Source Heat Pump with CE
| US$1,360.00-5,980.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AW10-20
Usage
Room
Indoor Machine Noise
36-49dB
Certification
CE
China Energy Efficiency Standard
Level 3
Cooling/Heating
Cooling/Heating
Power Source
Electrical
Power Type
AC
Condition
New
Refrigerant
R410A/R407c/R134A/R22/R404A
Compressor Brand
Copeland
Compressor Type
Scroll Type
Condenser
Blue Aluminum Fin
Evaporator
High Efficiency Tank Type
Heat Recovery
Optional
Electric Parts
World Famours Brand
Refrigerant Valves
Emerson
Running Condition
-30 Degree C
Colour
White(Standard) or Others
Transport Package
Plywood Package Unit
Specification
10-20
Trademark
Amrta or OEM
Origin
China
HS Code
8418612090
Production Capacity
6000PCS/Year
Packaging & Delivery
Package Size
1113.00cm * 594.00cm * 977.00cm
Package Gross Weight
120.000kg
Product Description
-25 ~ 46degreec DC Inverter Evi Low Temperature Air Source Heat Pump with CEHeating Capacity 10 kW ~ 20 kW
Product features
Compressor
DC inverter type compressor
EVI technology
Enhanced vapor injection technology, heat pump can work -30oC ambient temperature
Refrigerant
R410A refrigerant, more environmental
Stable and reliable
Simulation optimization + test verification, more stable and reliable
Compact design
Use tank type heat exchanger
Low noise fan
For lower ambient temp working
Professional control, more reliable, adaptive control for EXV
Heat exchanger design
More safety
Over 7 protections
Reliable EXV
Specifications
| Model | AW10 | AW14 | AW17 | AW20 | |||
| Ambient temperature DB/WB | Hot water | Capacity | Unit | Packaged type | |||
| 7oC/6oC | 41oC | Heating | kW | 11.2 | 18.9 | 19.8 | 20.7 |
| Power input | kW | 3.1 | 5.4 | 5.8 | 6.4 | ||
| -12oC/-14oC | 41oC | Heating | kW | 7 | 11.9 | 12.9 | 13.9 |
| Power input | kW | 2.95 | 4.9 | 5.2 | 5.6 | ||
| -20oC/--oC | 41oC | Heating | kW | 5.9 | 9.6 | 10.7 | 11.2 |
| Power input | kW | 2.9 | 4.6 | 5.3 | 5.5 | ||
| 35oC/--- | 7oC | Cooling | kW | 8.7 | 12.5 | 13.5 | 14.9 |
| Power input | kW | 3.0 | 4.4 | 4.8 | 5.6 | ||
| Standard heating COP/IPLV | W/W | 2.37/2.83 | 2.43/2.86 | 2.48/2.87 | 2.48/2.88 | ||
| Max power input | kW | 5.5 | 8.5 | 8.5 | 8.5 | ||
| Max working current | A | 20 | 40 | 40 | 40 | ||
| Compressor type/Brand | DC inverter type/Highly | ||||||
| Compressor quantity | 1 | ||||||
| Fan | Low Noise axial type | ||||||
| Fan quantity | 1 | 2 | 2 | 2 | |||
| Heat exchanger | Tank type | ||||||
| Inlet/outlet water pipe size | G1 | G1 | G1 | G1 | |||
| Water flow rate | m3/h | 1.5 | 2.14 | 2.32 | 2.56 | ||
| Water resistance | kPa | 22 | 42 | 49 | 57 | ||
| Refrigerant | Type | R410A | |||||
| Charge amount | kg | 4 | 5 | 5 | 5 | ||
| Min/Max Ambient temp | Cooling | oC | 21-43 | ||||
| Heating | oC | -30-21 | |||||
| Min/Max Hot water | Cooling | oC | 7-24 | ||||
| Heating | oC | 25-60 | |||||
| Min/Max working water pressure | MPa | 0.05-1 | |||||
| Power supply | 220V/1/50Hz | ||||||
| Dimension(L×W×H) | mm | 1113x594x977 | 1113x594x1477 | ||||
| Noise level | dB(A) | 64 | 66 | 66 | 66 | ||
| Net weight | kg | 120 | 160 | ||||
