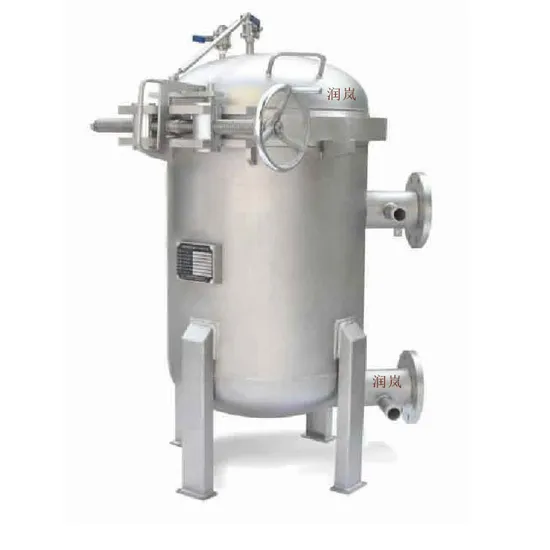

Stainless Steel Quick Open Multi Bag Filter Housing

Product Description

Product Description
RHKD quick opening bag filter main components of quick opening bag filter are upturning top cap, spring gravity balance device, the handwheel shake tight device, stainless steel elastic clamp, lift and pull screw rod, filter cylinder body and internal filter bag, filter basket, etc.
With reasonable structure, good sealing, high pressure resistance, good appearance and a series of advantages.Product Features
1. Use stainless steel elastic hoop instead of traditional eyebolt pressure device, the filter head switch time is reduced to less than half a minute, than ordinary bag machine saves 30-50 times the operation time, greatly improving the work efficiency.
2. The biggest pressure can reach 1.2Mpa, the design pressure value more than 20% higher than similar products.
3. Spring gravity balance device replace the tradition manual rocker arm, just a finger can raise the proof and knock down.
4. Roof opening angle 105°, head down after locking device. Reasonable design make filter won't produce side turn, dumping or roof after let go of not button on the phenomenon.
5. Each filter bag has designed separate locking device, ensure good seal between the filter bag and filter.
6. If the built-in floating ball can change the filter bag more healthy, the built-in magnetic bar can adsorb metal particles.
7. It's suitable for the working conditions of frequently change the filter bag.Product Parameters

Model/Dimension	DN(inch)	Dmm	H1 mm	H2 mm	H3 mm	B mm	Flow
RHKD-4P2S	4	558Φ	926	508	1727	400	180m3/H
RHKD-5P2S	5	608Φ	930	508	1727	425	225m3/H
RHKD-6P2S	6	658Φ	935	508	1727	450	280m3/H
RHKD-7P2S	8	758Φ	1016	482	2030	525	360m3/H
RHKD-8P2S	10	958Φ	1102	483	2266	600	450m3/H

Product Application
Food and beverage industry: beer, wine, wine, sake, liquor, wine, fruit juice, bottled water, tea drinks, soy milk, syrup, dairy products, food additives, water filtration to clarify the process and CIP. Petrochemical industry: all kinds of lubricants and oil, glue, chemical fiber manufacturing process of various solution was filtered. Oil and gas industry: amine desulfurization, dehydration flux filter, oil field water, completion fluid filtration. Car paint, painting industry: paint, electrophoretic paint, pre-treatment fluid, paint and paint raw materials and solvent filtration Textile/printing and dyeing/paper making industry: spinning liquid, dyes, flux, water, additives, adhesives filter. Edible oils and soap industry: polishing purification of edible oil, soap raw materials and water filtration. Pharmaceutical industry: a variety of pharmaceutical intermediates, pharmaceutical raw materials, solvent filtration. The electronic and electroplating industry: a variety of plating solution and water filtration. Machining industry: a variety of cutting fluid, coolant and cleaning liquid filtration.
Etc...
Certifications
Packaging & Shipping
Company Profile
FAQ

Q: Are you manufacturer?

A: Yes, we are a manufacturer with over 15 years of history, address is located in Fengxian District, Shanghai.

Q: Can you provide sample? Free or chargeable?

A: Yes, we can provide free sample for filter elements, for filter housing need chargeable.

Q: Dose the product support customization?

A: We have a professional team of engineers, can provide customized solution plan according to customers need.

Q: What is the payment terms?

A: Usually we support the T/T.

Q: How to choose the shipping way?

A: We cooperate with professional logistics companies, and customer also can choose own freight forwarder.
