Automatic Bowl Inside Polishing Machine

Product Description

1. General Description
This Equipment is specially designed for Polishing the Stainless Steel Sink Inner Side. When it work, the workpiece turn around by the even speed, and the rolling polishing head clinging and attaching to the inside of sink make the cross movement with the acted direction of workpiece, by this way the workpice will be polished equably and beautifully.

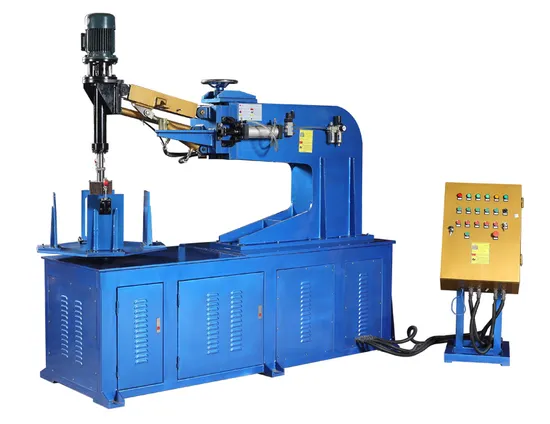

2. Sketch and Photo of the Machine as photo.
3. Machine Working Process and Step
Load the Workpiece to the Fixing Jig of Working Table -- Start the Machine -- The Polishing Head and Workpiece Start to Go Round and Round Up and Down -- Polishing Until Finish -- Automatic Back to the Original Position -- Unload the Workpiece.
4. Main Parts List of the Machine
4.1 Air Cylinder and Pressure System;
4.2 Beeline Track;
4.3 Motor Power System
4.4 Polishing Roller
4.5 Special Design Fixing Jig and Table
4.6 Main Body of Machine
4.7 Electric Controlling Box
4.8 Machinery Movement System
5. Main Technical Parameter of Standard Model Machine
5.1 Machine Dimension: L: 2000 mm× W: 570mm× H: 2200mm(Or designed specially basing on the workpiece);
5.2 Polishing Length and Width: 1300mm*600mm(Or designed specially basing on the workpiece);
5.4 Total Power: 3KW;
