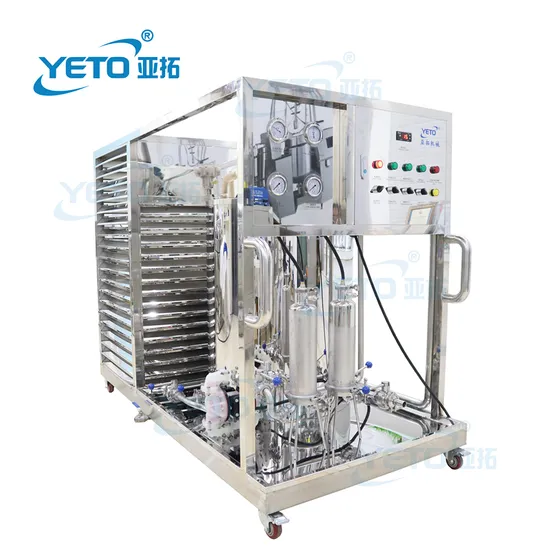

200L Perfume Making Production Line Essential Oil Perfume Mixer Blending Tank with Filter

Product Description

Product Description Cosmetic Perfume machine pmeumatic mixer filter equipment fragrance oil freezing making machine with filter
Perfume Freezing Filter making machine:
This perfume chiller mixing machine with mixing, freezing and filtering functions. Additionally equipped with additional plate and frame filter. It is customized according to our USA customer. If you have high requirements for perfume quality, you can choose this one. Or any other requirements,please contact us. we can customize the machine.
Features: 1.It is an ideal device for filtering cosmetics and perfume in cosmetic factories.
2.This perfume making machine is made of high quality 304 stainless steel or 316L stainless steel.
3.The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration.
4.The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning. Product Parameters

specification	3P / 5P / 10P
Power	308v/50HZ
General power	2.2kw / 3.75KW / 7.5KW
Refrigeration temperature	-5ºC- -15ºC
Refrigeration liquid	R22
Air source pressure	0.5-0.6Mpa
Filter pressure	0.2 Mpa
Two level filter	0.2μm

Detailed Photos --Adopt Taiwan imported pneumatic motor(MBP Brand) --The mixing speed can be adjusted.
--Adopts stainless steel heat preservation freezing tank and titanium metal coil pipe. --The mixer paddle and contact part all use the SUS316L material.
--Dual stage filter Polypropylene microporous filtration film. Filtration accuracy can reach 0.1μm
Control panel 200L model-perfume chiller mixing filtering machine
Similar products
Complete perfume production line We can provide complete perfume production line, such as the chiller mixing machine, filling machine, crimping machine,collar pressing machine and labeling machines, semi automatic and full automatic models. Welcome to contact us to get more details.
