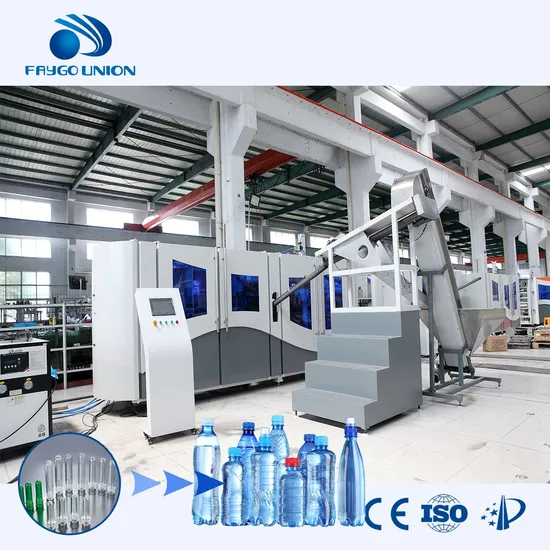

Fully Automatic PET Cola Sprite soda Carbonated drink bottle Making Machine equipment
This Bottle Blow Moulding Machine mainly produces PET plastic bottles, pure water, mineral water PET bottles, and beverage bottles.
It is developed totally independently, has our own intellectual property rights, and has obtained more than 13 national patents.
FG series are the most stable two-step automatic stretch blow moulding machine. FG4 serie has four cavities and the maximum capacity of the products is 2L.The capacity can be 6800-8000BPH, It can blow bottles in shapes:Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET etc.
The Features of this Bottle Blow molding Machine

1).High Automatization
2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.
3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed:6800BPH(4-cavity)
5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.
7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.
Product Parameters

Model			FG4	FG6	FG8	Remark
Mold number(piece)			4	6	8
Capacity(BPH)			6500~8000	9000~10000	12000~13000
Bottle specification	Max volume(mL)		2000	2000	750
	Max height(mm)		328	328	328
	Round bottle max diameter(mm)		105	105	105
	Square bottle max diagonal(mm)		115	115	115
Preform specification	Suitable inner bottle neck(mm)		20--25	20--25	20--25
	Max preform length(mm)		150	150	150
Electricity	Total installation power(kW)		51	51	97
	Heating oven real power(kW)		25	30	45
	Voltage/frequency(V/Hz)		380(50Hz)	380(50Hz)	380(50Hz)
Compressed air	Pressure(bar)		30	30	30
Cooling water	Mold water	Pressure(bar)	4-6	4-6	4-6	Water chiller (5HP)
		Temperature regulation range(°C)	6--13	6--13	6--13
	Oven water	Pressure(bar)	4-6	4-6	4-6	Water chiller (5HP)
		Temperature regulation range(°C)	6-13	6-13	6-13
Machine specification	Machine dimension(m)(L*W*H)		3.3X1X2.3	4.3X1X2.3	4.8X1X2.3
	Machine weight(Kg)		3200	3800	4500

Product Details
Servo driving and cam linking blowing section:
The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement.
equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.
Small performs distance heating system:
Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
Efficient and soft perform inlet system:
By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protecte
Modularized design conception:
Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts.
FG Series Optional items:
Exploded bottles ejection unit:
During the blowing process, if the bottle burst, bad bottles can be automatically removed.
This prevents the bad bottles from entering the filling machine.
HP air recovery system:
After the bottle blowing, high-pressure air can be recycled and used again for the pre-blowing and machine physical movement.

Oven and preform temperature detection system:
Detection system detects temperature of oven and the temperature of performs.
When the preform temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.
Equipped with remote monitoring system:
Engineers in China headquarter can check the data collected and sent by the PLC anytime with the mobile ,feedback will informed to the client's site if something abnormal ,give the machine 24 hour'baby care in the cradle.
