Duoling Mining Equipment PE 900 X 1200 Jaw Crusher Rock Crusher

Duoling Mining Equipment PE 900 X 1200 Jaw Crusher Rock Crusher

US$2,999.00-469,999.00 1 Piece (MOQ)

Basic Info.

Cutter Material
Hard Alloy
Drive
Mechanical
Object
Stone
Application
Mines, Quarries
Max.Compression Strength
300MPa
Crushing Stage
Primary Crusher
Type
Jaw Crusher
Principle
Fixed Culling
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
250-300MPA
Tongs′ Features
Adjustable Tongs
Transport Package
Standard Export Package
Specification
PE800x1100
Trademark
Duoling
Origin
China
HS Code
8474209000
Production Capacity
2sets Per Month

Product Description

Duoling Mining Equipment PE 900 X 1200 Jaw Crusher Rock Crusher
Introduction of PE Series Jaw Crusher
The PE series jaw crushers manufactured by our company are designed for using in mines, quarries and other industrial applications, on the base of previous experience of sales at home and abroad assuring good reliability and high productivity. The size range of feed material (Maximum compression strength 300Mpa) is from 21 to 1200mm. They are the optimum equipment as primary jaw crushers.
Specifications of PE Series Jaw Crusher
Model Feed Opening(mm) Close Size Setting
(mm)
Capacity
(tph)
Power
(kw)
Weight
(ton)
Width Length
PE-500x750 500 750 50-120 50-150 55 11.2
PE-600x900 600 900 75-180 65-190 75 17.2
PE-800x1100 800 1100 90-220 140-320 110-132 29.6
PE-900x1200 900 1200 95-240 160-450 132-160 45.8
PE-1200x1500 1200 1500 150-300 430-880 160-250 79.4
PE1400x1800 1400 1800 185-300 500-1100 250-315 120

Application of PE Series Jaw Crusher
Primary Crushing
Mining, Aggregate, Metallurgy, Industrial, Construction, Environmental

Working Principle of PE Series Jaw Crusher
The motor transmits through belt,driving the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle plate and moving jaw plate increases when mobile jaw moves.So the mobile jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.

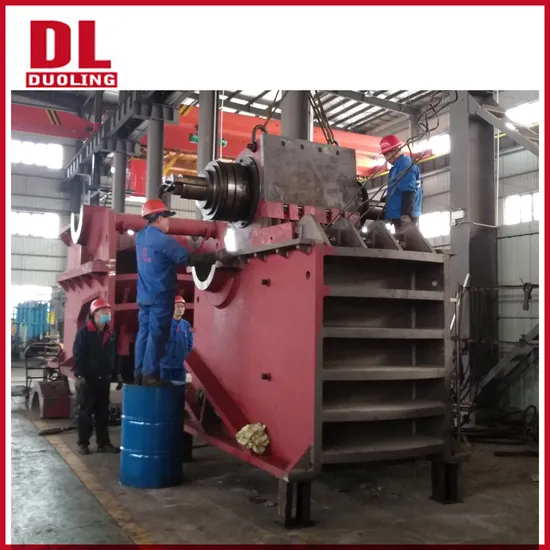

Workshop of PE Series Jaw Crusher
Duoling PE Series Jaw Crusher at site
