Full Automatic 2L Bottle Making Machine
| US$34,000.00-35,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DSB70II
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Application
Bottles, Jars, Jerry Cans, Gallons, Containers
Station
Single Station or Double Station
Die Head
Single Head or Double Head
Max. Product Volume
5L
Auto-Deflashing
with Auto-Deflashing
Clamping System
Toggle Type Clamping System
Mould
One Cavity or Two Cavity
Suitable Material
HDPE,PP,PVC,PS,PETG,LDPE
Sutiable
0~5L Bottle
Made in
China
Machine Dimension (L*W*H)
3.3*2.3*2.6m
Total Weight
5.5ton
Clamping Force
68kn
Platen Opening Stroke
200-500mm
Extrusion Motor Power
22kw
Transport Package
Film Packing
Specification
DSB70II
Trademark
DAWSON
Origin
Jiangsu Zhangjiagang
HS Code
8477301000
Production Capacity
400~450 PCS/H
Product Description
DAWSON MACHINERY & MOULD GROUP***EXTRUSION BLOW MOLDING MACHINE EXPERT*** Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

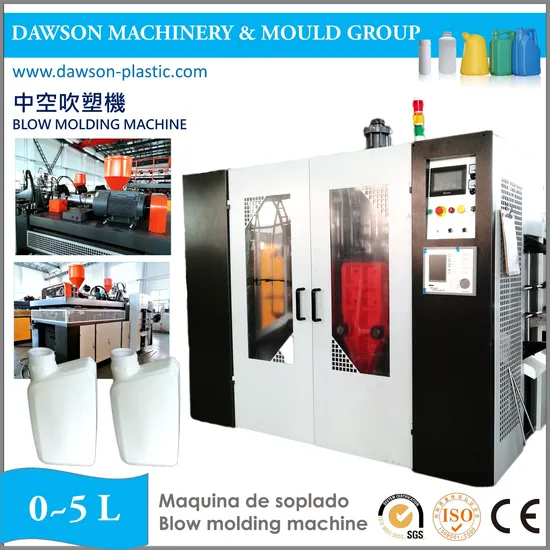

Automatic Extrusion Blow Molding Machine DSB70II u Product: 0~5 L Bottles
u Power supply: 380/220v 50/60 Hz Tri-phase
u Die head number: Single / Double
u Suitable raw material: PE, PP, PVC, PS, PETG
u Output capacity: 180~200 pcs/h (5L) / with single head
400~450 pcs/h (1L) / with double head
| SPECIFICATIONS | UNITS | DSB70II SERIERS | |||
| Max container capacity | L | 5 | |||
| Number of die heads | Set | 1 | |||
| Dry cycle time | Second | 5 | |||
| Machine dimension (L*W*H) | M | 3.3*2.3*2.6 | |||
| Total weight | Ton | 5.5 | |||
| CLAMPING UNIT | |||||
| Clamping force | KN | 68 | |||
| Platen opening stroke | mm | 200-500 | |||
| Platen size | mm | 360*470 | |||
| Max mould size (W*H) | mm | 390*470 | |||
| Mould thickness | mm | 210-300 | |||
| Platen moving distance | Mm | 440 | |||
| POWER | |||||
| Extrusion motor power | KW | 22 | |||
| Oil pump motor power | KW | 5.5 | |||
| Extrusion heating power | KW | 12 | |||
| Head heating power | KW | 5.7 | |||
| Cooling Fan power | KW | 0.26 | |||
| Total power | KW | 45.46 | |||
| Average power consumption | KW | 23.5 | |||
| EXTRDER UNIT | |||||
| Screw diameter | mm | 70 | |||
| Screw L/D ratio | L/D | 24 | |||
| Plasticizing capacity | Kg/hour | 90 | |||
| Number of heating zone | Zone | 3 | |||
| Extruder heating power | KW | 14.2 | |||
| Extruder driving power | KW | 22 | |||
| Cooling Fan No | 2 | ||||
| Fan power | KW | 0.26 | |||
| DIE HEAD | |||||
| Head type | Continuous extrusion head | ||||
| Head No | 1 | 2 | 3 | 4 | |
| Central distance / mm | - | 160 | 110 | 85 | |
| Max die diameter / mm | 135 | 80 | 50 | 30 | |
