ABC Three Layers Co-Extrusion Biodegradable Polyethylene Agricultural Film Blowing Machine
| US$80,000.00-200,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SJ55-GS1300/ SJ60-GS1500/ SJ65-GS1800/SJ-GS2300
Maximum Folding Width of Film
1000-3000mm
Screw Diameter
50-75mm
Automation
Automatic
Computerized
Computerized
Machine Weight
30ton
Certification
CE, ISO9001:2008
Useful
Agricultural Film, Package Film
Capacity
250-300kgs
Film Thickness
0.03-0.20mm
Rotary System
Horizontal Type 360 Degree Reversing Haul-off
Rewinder
Automatic Double Rewinder
IBC System
Internal Bubble Cooling System
Bubble Fixer
up-Down Film Bubble Fixer
Screw Material
Bimetalic High Speed Screw
Main Motor Brand
Siemens/ABB
Auto Loader
3PCS
Net Changer
Hydraulic
Transport Package
standard wooden box for export
Specification
1000mm- 3000mm
Trademark
sanbi
Origin
CHINA
HS Code
84773000
Production Capacity
200-400kg/h
Product Description
ABC Three Layers Co-Extrusion Biodegradable Polyethylene Agricultural Film Blowing MachineDescription :
This film blowing machine set is to satisfy the customer's requirements of high quality, high out put film blowing equipment. It adopts the extruder with force feeding function, precision type ceramic heater, precision type double vents air ring, horizontal type rotary traction system, IBC inner cooling system, fully automatic surface friction type double cut double winders, computer concentrate control system, advanced technique and equipments. Compare with kindred equipment, it has the advantages such as more compact structure, higher output, better produce quality, less energy consume, easier operation. It can be widely used into various kind of high transparence packing film manufacture, and create the considerable economic benefit for you.
Main Parameter:
| Type | SJ55-GS1300 | SJ60-GS1500 | SJ65-GS1800 | SJ-GS2300 |
| Max. Lay Flat Width (mm) | 1200 | 1400 | 1700 | 2100 |
| Film Layer | 3 | 3 | 3 | 3 |
| Film Thickness (mm) | 0.02-0.12 | 0.02-0.12 | 0.02-0.12 | 0.02-0.12 |
| Max. Output(kg/h) | 200 | 250 | 300 | 400 |
| Raw Material | LLDPE, LDPE, EVA | |||
| Screw Diameter(mm) | Φ 45/φ 55/φ 45 | Φ 50/φ 60/φ 50 | Φ 60/φ 70/φ 60 | Φ 75/φ 90/φ 75 |
| Screw L/D Ratio | 30.1 | 30.1 | 30.1 | 30.1 |
| Screw Max. Rotation Speed (r/min) | 100 | 100 | 100 | 100 |
| Extruding Driving Power(kw) | 18.5/30/18.5 | 22/37/22 | 30/45/30 | 55/90/55 |
| Die Structure | IBC Film Tube Inner Cooling System | |||
| Air-ring Structure | Double Vents Air Ring | |||
| Reversing Haul-off System | Horizontal± 180° | |||
| Take-off Wide-up Speed (m/min) | 45-120 | |||
| Total Power(kw) | 150 | 280 | 280 | 350 |
| Overall Dimensions(mm) | According to actual machine | |||

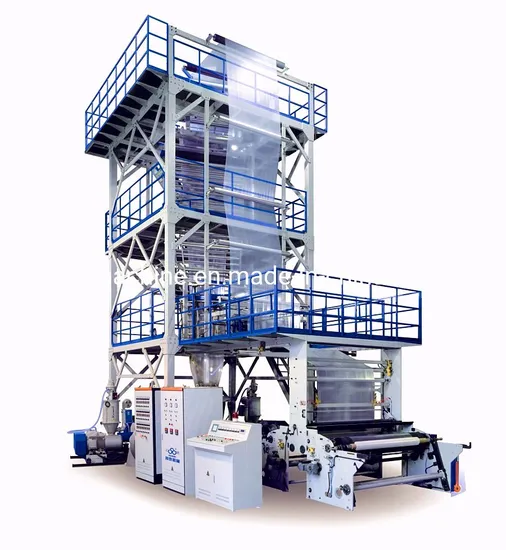

Machine Pictures:
