China Factory 25m/Min Speed European Standard Wood Pallet Nailing Machine

Product Description

China Factory 25m/Min Speed European Standard Wood Pallet Nailing Machine
Product Description

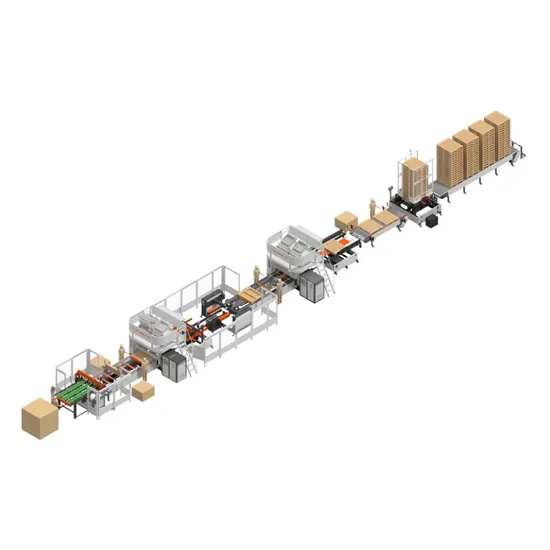

SF1000 automatic wooden pallet production line is used for assembling solid wooden pallets
The entire production line is modularly connected, can control each station start and stop through program. The full line consist with below separate machines, you can choose by on your requirements.
Product Parameters

Model	SF1000 automatic wooden pallet production line
Pallet type	Stringer/block pallets
Pallet width	800-1500mm
Pallet length	800-1500mm
Pallet height	80-160mm
Wood accuracy	-2mm max.
Productivity	About 4-6pc/min
Labor	4-5 operators
Nailing gun quantity	36pc in first nailing head 24pc in second nailing head
Bulk nails	35-100mm length body diameter 2.8-3.2mm head diameter 6.5-8.0mm 1st Nailing head with 3 nail boxes can use 3 different size nails in one pallet. 2nd Nailing head with 2 nail boxes can use 2 different size nails in one pallet.
Total power	95.5KW
Voltage	380v 50 Hz 3 phase
Air pressure	0.65-0.8MPa
Motors brand	Chinese brand
Electric components	brand
Pneumatic components	AirTac brand
PLC & touch screen	Siemens brand
Total space	35*5*3.5m
Total weight	About 20ton

Automatic block feeder
This station is compatible with 60-200mm width block, independent program control, and can realize online synchronous control with the nailing head.

Name	Mechanical feeding
Power	6.5 Kw
space	2.7*2.6*2.2m
Block size	60-200mm
Control	Siemens PLC+touch screen

Hydraulic nailing head
The nailing machine positioning mold adopts the circulation type, the bridge plate automatically falls, the operator only needs to place the panel in the positioning mold.
Different pallet only need to replace the positioning mold, and the running speed can be adjusted according to the time of manual place wood

Power	35 Kw
Productivity	4-6 pallets/min
Space	7.2*5.2*3.5m
Working size	Block 60-200mm
Pallet length	800-1500mm
Pallet width	800-1500mm
Operator	1-2

1st 180° turner
adopts two-side clamping method, which can work with most pallet styles on the market.

Power	3.5 Kw
space	3*2.8*2.3m
Control	Buttons

4-sides corner cutting table
Use saw blade to cut pallet corner, only can cut straight corner.

Project	Parameter
model	SF-1000QJ
Saw blade	350mm diameter
power	9.6 Kw
efficiency	4-6 pallets/min
Floor area	2.7*2. 7*1.4m
pallet length	800-1500mm
pallet width	800-1500mm
Operation mode	Automatic operation, requires external control

Heating stamping table

Project	Parameter
name	Heating stamping station
model	SF-1000TY
power	3.2KW
efficiency	4-6 pieces/minute
Floor area	2.6 * 2.8* 1.4m
pallet length	800-1500mm
pallet width	800-1500mm
Operation mode	Automatic operation, requires external control

2nd 180°turner
turning the pallet 180 degree, turn the pallet from top to bottom

Power	3 Kw
productivity	4-6 pallets/min
Space	3.1*2.7*1.4m
Pallet length	800-1500mm
Pallet width	800-1500mm
control	Control from outside control cabinet

90 ° turner table A
hold the pallet and automatic rotate 90 degree, change the pallet feeding from length side to width side.

Power	0.75 Kw
productivity	4-6pallets/min
Space	2.6*2. 7*1.4m
Pallet length	800-1500mm
Pallet width	800-1500mm
Control	Automatic working, control from outside control cabinet

90 ° turner table B
hold the pallet and automatic rotate 90 degree, change the pallet feeding direction, normally used to bend the line to L shape to save space.

Power	1.1 Kw
productivity	4-6pallets/min
Space	2.9*2.1*1.0m
Pallet length	800-1500mm
Pallet width	800-1500mm
Control	Automatic working, control from outside control cabinet

90 ° turner table AB
Combination of table A and B, hold the pallet and automatic rotate 90 degree, change the pallet feeding direction, normally used to bend the line to L shape to save space, at the same time, change the pallet feeding from length side to width side.

Power	1.75 Kw
productivity	4-6pallets/min
Space	2.9*2.1*1.0m
Pallet length	800-1500mm
Pallet width	800-1500mm
Control	Automatic working, control from outside control cabinet

Hydraulic stacker
The stacking height can reach 2.8 meters, loading weight 1500kg, about 15-20 finished pallets.

Power	3.7 Kw
productivity	4-6pallets/min
Space	2.3*2.7*3.9m
Pallet length	800-1500mm
Pallet width	800-1500mm
Control	Automatic working, button control

Detailed Photos

Related Product

SF1000	Wooden Pallet Production Line
SF2000	Wood Pallet Mat Nailing Machine
SF9022	Wood Pallet Legs Nailing Machine
SF9025	Stringer Wood Pallet Making Machine
SF9010	Stringer Wood Pallet Nailing Machine
SF9026	Stringer Wood Pallet Making Machine

Company Profile
1) Founded in 2003.
2) Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine, wood crate machine, nailless plywood box.
3) Owns 70% Market Share(Nailless plywood box machine) in China.
4) Expertized in R&D, Manufacturing, Marketing, Training, and Service.
5) Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6) Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7) Customer and feedbook
8) Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9) We have many CE certifications, EPR certifications, ISO certification and product patents.
10) Our Packaging & Shipping
After-sale service
1) Seller will send engineer (Chinese speaking, buyer prepare translator) to service in site, all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and insurance cost, hotel and eating responsible by buyer, and extra labor salary.
2) If travel abroad is impossible, then we will send you videos for installation and operation, and supply online guide from WeChat/WhatsApp, some of our customers work the machines properly through this way. We have English videos for almost every machine, videos about the installation steps, operation steps, maintenance steps, most our customer use the machine succeed base on our videos.
3) Warranty in 1 year since buyer receive the machine.
In warranty period seller will supply Free parts and online service exclude,
Easy wearing parts (saw blade, cutters, motor belt, small electric components).
Damage by wrong operation.
Out of warranty period seller supply paid parts, Lifelong responsibility.
And our Aftersales service team can supply free online support in 6 days per week, 10+ hours per day.
Below some pictures for your reference.
FAQ
Q, Can this machine make Euro/block or US/stringer pallets?
A, Yes, our this production line can make most pallets in market, just with customized molding system, time to adjust machine when change pallet need about 4-8 hours.
Q, Can the machine size bigger? Means make much bigger pallet
A, Yes, we can customize base on your requirements, with extra cost.
Q, Can this machine make two layers pallets?
A, Yes possible, 2-4 layers all can make.
Q, How long time for the machine production?
A, Normally 10-12 months.
Q, Is it difficult to maintenance the machine?
A, If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
