ISO CE Approved Jwc Transparent Film for Baby Diaper Machine Price

ISO CE Approved Jwc Transparent Film for Baby Diaper Machine Price

US$500,000.00-1,200,000.00 1 Set (MOQ)

Basic Info.

Model NO.
JWC-NK800-SV
Product Object
Baby
Designed Speed
800PCS/Min
Production Speed
600-800PCS/Min
Computer Control Panel
Yes
Product Specification
S, M, L, XL
Automatic Grade
Automatic
Certification
CE, ISO
Condition
New
Diaper Machine Color
Ivory White
Machine Direction
to Be Defined
Machine Power Source
380V/50Hz
Process
Baby Diaper Machine
Usage
98%
Type
Baby Diaper Machine
Processing Technology
Laminated Machine
Effciency
90%
After-Sales Service Provided
Video Technical Support
Service Provided
Field Maintenance and Repair Service
Transport Package
Transparent Film for Baby Diaper Machine
Specification
S, M, L, XL
Trademark
JWC
Origin
China
HS Code
84418090
Production Capacity
30 Sets

Product Description

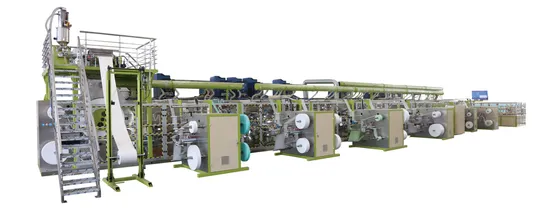

JWC-NK800-SV 205KW Installation Capacity 600pcs/min Stable Working Speed Pull-up Baby Diaper Machine
Product Description
This Full Servo classic I shape Baby Diaper Machine includes main machine, glue applicators, packing system and other accessory equipment including air compressor, vision detection system and metal detection machine etc. This Full Servo Classic I shape Baby Diaper production Machine can produce 3-5 sizes diapers according to the order. This production line can realize 100% full automatic control.
1.Machine frame Reasonably solid square steel frame
2. Crusher system
3. Fluff forming system
4. SAP feeding system
5. Bottom tissue feeding, roll diameter φ800mm
6. Upper tissue, roll diameter φ800mm
7. Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue
8. ADL feeding, roll diameter φ800mm
9. Fluff core inner cut device 1 set,adopt frame type structure, increase the cutter life
10. Leak cuff unit
11. Hydrophilic nonwoven supply, roll diameterφ800mm
12. Side tape supply
13. Three pieces complex, two sides fixing unit, adhesion pressing14. Bottom film supply
15. Frontal tape supply
16. Elastic waistband supply
17.Surface layer, absorption core, bottom film pressing
18. Product arc shape die cut
19.Pressing unit(Y shape roller) 20. Product vertical tri-fold 21. Pressing unit(Y shape roller) 22.Transmission unit 23 . Final cut unit 24.Horizontal fold transmission unit 25.Horizontal fold unit 26.Product transmission unit 27. Auto rejection exit (pneumatic)
28. Horizontal stacker transmission
Product Parameters
1 Design speed 800pcss/min
2 Working speed 600pcs/min
3 Qualified rate
≥ 97%
(exclude the wastage due to theglue applicators and materials splicing joint)
4 Efficiency ≥ 85%
5 installation capacity ≥205KW
7 Electricity 380V ±5%,50HZ
8 Wire Three phases four wires 380V/50Hz (ground wire) 3X120mm³+1X50mm³+1X25mm³
9 Air pressure 6 kg/cm2 ≥0.6mpa
10 Total weight 82tons
11 Machine size 30×10×5 M(L×W×H)
12 Working space 35×10×7 M (L×W×H)
13 Machine color Rice white ,can be changed by order
14 Product size S,M,L,XL
15 Containers 6X40HQ
Features at a glance
Auto lubricating System
Auto lubricating for the cutter units ,can make the machine have better cutting effect and extend the life of cutter system
Human-Machine Interface
Working speed(piece/min), single producing output, monthly output,annual output, counting quantity and products' passing rate can show on the screen
Materials automatic feeding System
Main raw materials adopt auto unwinding, auto splicing, tension control, auto FIFE web guider functions to guarantee the precise and stablility
Name Brand Origin
1 Servo motor Mitsubishi Japan
2 Auto web guider FIFE USA
3 Touchable screen Banner USA
4 PLC controlling system Mitsubishi Japan
5 Sensor Banner USA
6 Safety production Shneider France
8 Cutter raw material M7 USA
9 Gear according to usage BEM/NSK/SKF Germany/Japan/Sweden
10 Timing belt Optibelt or Gates Germany/USA
11 Low voltage electronic Shneider France
13 Temperature controlling system Omron Japan
15 Pressure regulating valve Airtac Chinese Taiwan
16 Pneumatic element Airtac Chinese Taiwan
17 Solenoid valve Airtac Chinese Taiwan
18 Moisture separator Airtac Chinese Taiwan
19 Automatic fault alarm Mitsubishi Japan
