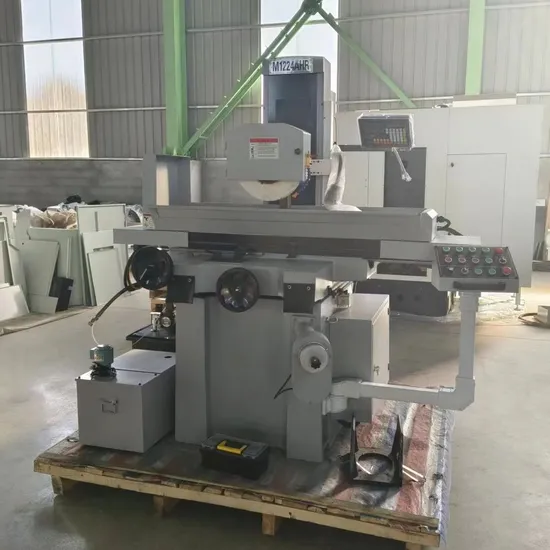

The Most Popular Mk1224 High Precision Metal Steel Surface Grinding Machine

The Most Popular Mk1224 High Precision Metal Steel Surface Grinding Machine

US$3,000.00-8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
MK1224
Type
Surface Grinding Machine
Processing Object
Curve
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Color
Customzied
Weight
1300kg
Max. Workpiece to Be Ground
630*250
Max.Travel of Table
650*250
Table Maximum Cutting Area
630*250
No.of T-Slot
1*14
Distance From Table Surface to Spindle C
450
Wheel Size
200*20*&31.75
Spindle Speed
2850
Table Longitudinal
3~20
Spindle Motor
1.5
Cooling Motor
40
Hydraulic Motor
1.5
Working Pressure
3
Max Capacity
18
Transport Package
Wooden Case
Specification
180cm * 140cm * 200cm
Trademark
wewoo
Origin
China
HS Code
8459619000
Production Capacity
300/Month

Packaging & Delivery

Package Size
210.00cm * 170.00cm * 215.00cm
Package Gross Weight
1400.000kg

Product Description

The most popular Mk1224 High Precision Metal Steel Surface Grinding Machine Product Description



Application: * Guide way is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy long life.
* Well-designed control panel with two-way rotate structure, make the operator getting suitable operating position very easy, improve work efficiency
* The grinder is standard equipped with auto down feed AC servo motor, and controlled by PLC and HMI, to realize auto grinding, then to realize auto grinding.
* For the control panel is equipped with HML, by which the operator can easy operating on the machine to realize auto working. Product Parameters

Item Unit M1224AHD M1224NC2 M1224NC3 M4080NC3
Worktable size (L×W) mm 600×300 600×300 650×300 800×400
Worktable traverse (L×W) mm 640×320 640×320 670×320 840×420
Max. Grinding area (L×W) mm 640×320 640×320 670×320 840×420
Number of T-slot mm 1×14 1×14 1×14 1×14
Distance from worktable to spindle center mm 490 490 490 580
Wheel size (OD×W×ID) mm 300×30×75 300×30×75 300×30×75 350×40×127
Spindle speed rpm 2850 1440 1440 1440
Worktable longitudinal speed m/min 3-20 3-20 3-20 6-20

Table horizontal feed
Continous (Variable speed) mm/min 150 150 150 150
Intermittent (stepless) m/time 0-5 0-5 0-5 0-5
Handwheel rotates mm 2.5 2.5 2.5 2.5
Hanwheel each grid mm 0.02 0.02 0.02 0.02

Vertical feed
Handwheel rotates mm 2 2 2 2
Hanwheel each grid mm 0.01 0.01 0.01 0.005

Vertical MPG feed
The MPG Rotates mm 0.1/1/10 0.1/1/10 0.1/1/10 0.1/1/10
MPG each grid mm 0.001/0.01/0.1 0.001/0.01/0.1 0.001/0.01/0.1 0.001/0.01/0.1
Spindle motor kw 4 4 4 5.5
Worktable cross feed motor kw 0.06 0.06 0.06 0.06
Worktable servo motor(Left-Right) kw --- --- 0.75 0.75
Worktable servo motor(Front-Back) kw --- 0.75 0.75 0.75
Vertical feed servo motor kw 0.75 0.75 0.75 0.75
Cooling pump motor kw 0.04 0.04 0.04 0.04
Hydraulic motor kw 1.5 1.5 1.5 2.2
Working pressure mpa 3 3 3 3
Fuel tank capacity L 80 80 80 100
The maximum flow L/min 18 18 18 18
Surface parallelism mm 300/0.003 300/0.003 300/0.003 300/0.003
Surface roughness um Ra0.63 Ra0.63 Ra0.63 Ra0.63
G.W./ N.W. kg 1500/1400 1500/1400 1500/1400 2000/2000
Packing size (LxWxH) cm 200×170×210 200×170×210 200×170×210 230×198×210

M1224AHD M1224NC2 M1224NC3 M4080NC3
Vertical: AC servo motor Vertical: AC servo motor Vertical: AC servo motor Vertical: AC servo motor
Cross: Motor Cross: AC servo motor Cross: AC servo motor Cross: AC servo motor
Longitudinal: Hydraulic Longitudinal: Hydraulic Longitudinal: AC servo motor Longitudinal: AC servo motor
Controller: GS-PLC Touch Controller: GS-PLC Touch Controller: GS-PLC Touch Controller: GS-PLC Touch

Detailed Photos
MAGNETIC CHUCK
Standard with pemanet magnetic chuck, easy operate, save much time. It can tighten many parts
and even small parts.
LONGITUDINAL HYDRAULIC
Table longitudinal move,drived by motor.
RAPID LIFTING
Grinding head verticalmove can be adpoted
with power rapid move or hand mocro feed.
OPERATION PANEL
Table moving,auto feed,other operate can be con-
trolled by these buttons and handles.
GRINDING WHEEL
large grinding volume, can grinding various planes
and comples forming surfaces.


Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
