1bzdz-5.3 Heavy-Duty Hydraulic Wing Disc Harrow/Harrow Disc/Disk Harrow/Harrow Disk
| US$13,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1BZDZ-4.4/4.8/5.3/5.6/6.0
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Color
Yellow
Warranty
One Year
Price
Best
Colour
Best
Quality
Best
Transport Package
Iron Frame
Specification
ISO9001: 2000
Trademark
Dadi
Origin
China Shandong
HS Code
8432290000
Production Capacity
200 Sets/Month
Product Description
Disc harrow, harrow disc,disk harrow,harrow disk,light disc harrow,heavy duty disc harrow,disc harrow factory,disc harrow in China,high quality disc harrow,farm disc harrowThank you for visiting for our web.Hope the information will be helpful for you

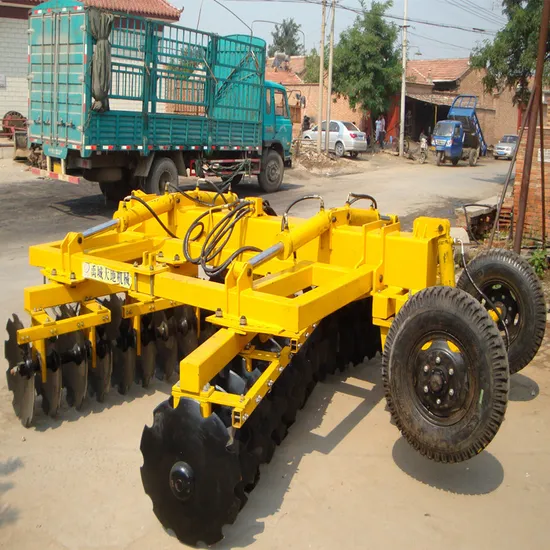

1BZDZ series wing-folded heavy-duty disc harrow are mainly used for cleaning away stubble of plants before tillage,or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields,they can also be used as a plough for primary tillage in dry culdtivated fields.The series produced are all fitted with hydraulic rubber wheel for transportation.It is easy to be transported and change direction on the edge of fields.
Technical parameters:
| Model | Unit | 1BZDZ-4.4 | 1BZDZ-4.8 | 1BZDZ-5.3 | 1BZDZ-6.2 |
| Overall dimension | Mm | 5800×4500×1500 | 5800×4950×1500 | 5800×5400×1500 | 5800×6380×1500 |
| Weight | Kg | 3100~3150 | 3250~3300 | 3400~3450 | 4150-4200 |
| Working width | M | 4.4 | 4.8 | 5.3 | 6.2 |
| Working depth | 240 | ||||
| Blade spacing | Mm | 230 | |||
| No of disc | Pc | 40 | 44 | 48 | 56 |
| Dia.Of disc | Mm | 660 | |||
| Transport clearance | Mm | >260 | |||
| Productivity | Ha/h | 2.7 | 3.2 | 3.8 | 4.65 |
| Matched power | HP | 105-110 | 115-120 | 125-130 | 140-160 |
| Linkage | Trailed | ||||
