2000W 4 in 1 Handheld Fiber Laser Cutting Cleaning Welding Machine Price for Metal Rust Remover

Product Description

2000W 4 in 1 Handheld Fiber Laser Cutting Cleaning Welding Machine Price for Metal Rust Remover
Product Description

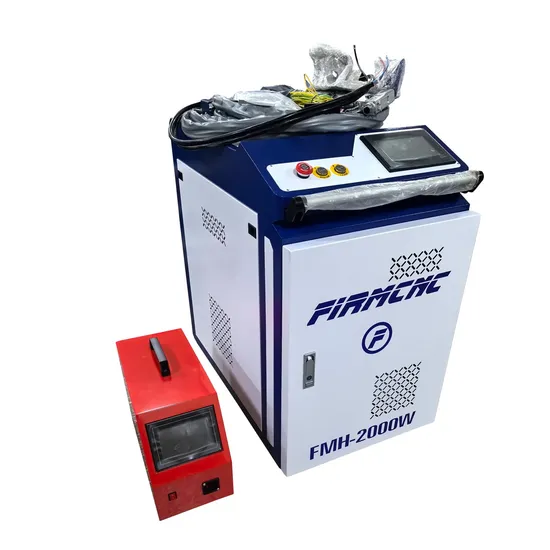

FIRMCNC Brand laser cleaning machine 1000W, 1500W, 2000W, 3000W for choose.
It is mainly composed of continuous fiber laser, transmission fiber, hand-held laser cleaning head, control system and cabinet. It has many new ideas based on humanization and work effectiveness in terms of equipment shape, structure and man-machine interface suitable for operation.
The laser cleaning machine produced by Jinan FIRMCNC is a new generation of high-tech products for surface cleaning, thin metal welding and cutting. It is very easy to install and operate. The machine needs no chemical reagent, no medium, dust-free and water-free cleaning, with the advantages of automatic focus, crank surface cleaning and high surface cleanliness.Laser cleaning machine can remove the object surface resin, the paint, the oil pollution, Stains, dirt, rust, coatings, coatings and oxide coatings are widely used in the industry, covering ships, steam repairs, rubber molds, high-end machine tools, track and environmental protection.
FIRMCNC Laser Cleaning Machine Advantage:
Product Advantages
# Hand-held cleaning, flexible and convenient, can be cleaned in any shape and angle;
# The equipment is compact and easy to move. Not only is it convenient for long-distance cleaning of large workpieces, it can also be cleaned outdoors;
# Simple operation, easy to use, no professional knowledge required;
The cleaning speed is fast, and the efficiency is more than 5 times that of the grinding machine;
# The effect is beautiful, the deformation is small, and the cost of grinding is saved;
Performance characteristics
# Quick, smooth and accurate cleaning to remove surface paint, coating and oxide layer;
# Equipment processing does not damage the base material;
# Using continuous fiber laser, excellent beam quality, maintenance-free, photoelectric conversion efficiency greater than 25%, pump source service life greater than 100,000 hours;
# The equipment can realize automatic operation and simple operation;
# It can be used for a long time, and the operating cost is low;
# It can process parts with complex shapes and small parts, and can also process in vacuum;
# Combined with automatic mechanisms such as mechanical arms, it can realize the automation of processing;
FIRMCNC Laser Cleaning Machine Technical specification:

Technical Parameter
Model	FMH-2000W
Rated output power	2000W
Power adjustment range	10%~100%
Laser center wavelength	1080±3nm
Maximum modulation frequency	50kHz
Power instability	<3%
Fiber core	20μm
Collimated focal length	50mm
Focus focal length	80mm/120mm
Wire diameter	0.8,1.0,1.2,1.6
Welding gun weight	1.1kg
Weld width adjustable	0~6 mm
Water flow	>30L/min
Product structure	All-in-one
Working temperature	10~40ºC
Working environment humidity	<70%
Operating Voltage	380VAC 3P 60HZ

Main parts and samples
FIRMCNC Laser cleaning head Technical Parameters:
Interface type: QBH Laser incidence mode: coaxial
Laser power: 2000W Laser wavelength range: 1080±20
Collimation focal length: 50mm Focusing focal length: 300mm±20mm
Shielding gas: coaxial Weight: 0.8kg Adjustable width: 0-150mm
Language switching: set the system language mode
Support Chinese, English, Russian, Japanese, Spanish, German, Korean, French, etc.
FIRMCNC laser cleaner samples
Laser cleaning of aluminum alloy before and after
Laser cleaning of Metal Surface Oxide before and after
Laser rust removal before and after
Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including laser machines, such as laser cutting machine, laser welding machine, laser cleaning machines, also have cnc router machines, wood lathe, mould cnc milling machine, fiber laser cutting machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Packing & shipment:
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
Our Advantages
* All of machines are fully assembled and thoroughly tested and checked prior to shipment.
* We provide pre-sales technical advisory services, technical maintenance training and operational training services.
* We provide free repair for main spare parts within warranty period according to warranty agreement.
* We provide upgrades and maintenance for software system within warranty period.
* We provide technical maintenance and repair for third-party hardware and software products according to third-party manufacturer's warranty-grade.
* We provide preferential lifetime maintenance of all equipment.
FAQ
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our years of experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, video call ,email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use", and we provide engineers available to service machinery overseas.
