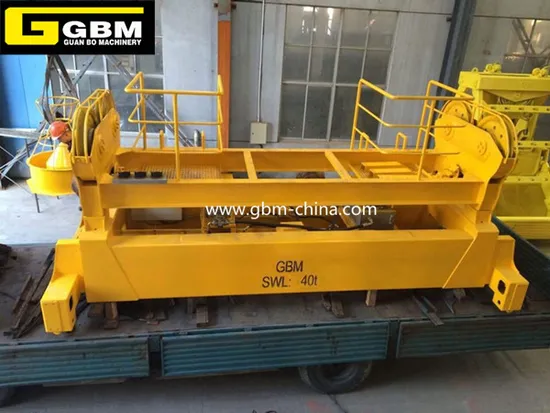

Electric Container 20FT 40FT Telescopic Spreader
| US$7,000.00-10,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
GBM 20/40CS
Type
Lifting Point
Material
Steel
Lifting Capacity
>6T
Fixed Form
Welding Type
Lifting Eye Type
Reversed Eye
Rope Core Type
Steel Core
Power Source
Electric
Shape
Endless
Certification
GS, CE, RoHS, ISO 9001
Sling Color
Blue
Transport Package
Nude Packing
Specification
20ft 40ft 45FT
Trademark
GBM
Origin
China
Production Capacity
50 Sets /Year
Product Description
1.Scope of supply
One unit 20'/40' GBM semi-automatic container spreader. It includes 4 steel wire ropes, which have rigging rings at the end of the steel wire ropes. The ends that connect with the crane have a concentrated ring.
| Product Description 1.Scope of supply One unit 20'/40' GBM semi-automatic container spreader. It includes 4 steel wire ropes, which have rigging rings at the end of the steel wire ropes. The ends that connect with the crane have a concentrated ring.
2.Overall Dimensions
3. Technical Parameter
4. Surface Treatment & Painting 1. Flame dirt-remover, and then shot blasting. 2.Primer coating (Epoxy resin paint) app. 40µm Middle (Epoxy resin paint) app. 80µm Top paint (Polyurethane paint) app. 40µm. | ||||||||||||||||||||||||||||||||||||||||||||
2.Overall Dimensions
| Item | 20' | 40' |
| Distance between lock centers(length) | ≈ 5853 mm | ≈11985 mm |
| Distance between lock centers(width) | ≈ 2260 mm | ≈2260 mm |
| Overall Length | ≈ 6058 mm | ≈12188 mm |
| Overall Width | ≈ 2610 mm | ≈2610 mm |
| Frame Height | ≈ 636 mm | ≈731 mm |
3. Technical Parameter
| Item | 20' | 40' |
| Dia. of pressed wire rope slings | 32 mm | 36 mm |
| Length of pressed wire rope slings | 3.5m per piece (4 pieces for each set) | 8.5m per piece (4 pieces for each set) |
| Steel Frame | Material Q345B | Material Q345B |
4. Surface Treatment & Painting
1. Flame dirt-remover, and then shot blasting.
2.Primer coating (Epoxy resin paint) app. 40µm
Middle (Epoxy resin paint) app. 80µm
Top paint (Polyurethane paint) app. 40µm.
