Product Description

Product Description

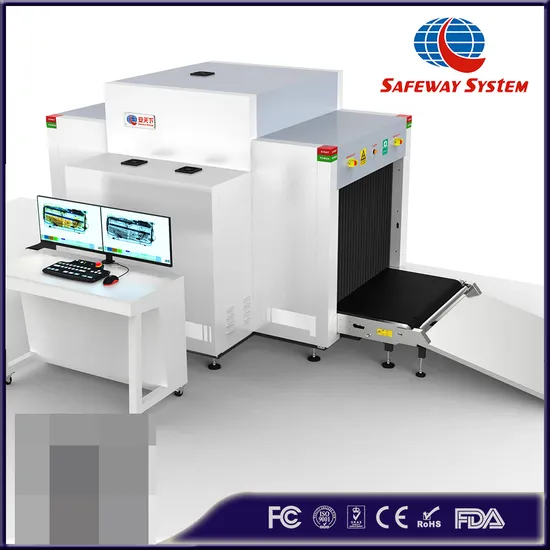

AT100100D Dual view Airport X-ray Security Scanning Inspection Machine with two generators, TIP function and explosive detection
Now dual view x-ray security scanner is a hot trend for high end customers security needs, it is deployed with two generator, one is from top, the other from the side, which can give two perspective and high quality scanned images from different angles, to discover and reveal the potential threads in the baggages and luggages.
AT100100D is totally designed and manufacturer by our own company. Every year, we invest a large amount of labors and resources in the development of new technology and models. We own all the copyrights and patents, from the outlook design to the software. Safeway system is the market leader and one of the very few companies in China who can creat the new
AT100100D widely applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.
Model Number
A100100D

Advantages
Comprehensive leadership: Product performance of International first-class level, high-definition images, strong penetration, high resolution, and powerful material identification. Unique system: with embedded windows operating system, multi-core ARM, the system features a simple architecture, low power consumption, energy saving and environmentally friendly, meanwhile it has a real-time status monitoring function to keep abreast of the device work process. Safety and environmentally friendly: The equipment meets safety and environmental standards. Stable and reliable: The production process is strictly controlled in accordance with the IS09001 quality management system. Through rigorous high-low temperature experiments, wet heat experiments and vibration experiments, it is certified that the product runs continuously for more than 10,000 hours without failure. Strong frame shell: Made by 304 stainless steel, 2-3mm cold-rolled steel plate and Fangtong steel, integrated with industrial advanced technology, the frame shell outside is designed with strong and reliable structure, to ensure rust-proof, corrosion-proof and free of cable damage
Equipment functions
Imaging process functions: Color/BW, Local Enhancement, Enhancement of High Penetrating Power, Enhancement of low Penetrating Power, Super Enhancement, Organics Exclusion, Inorganic Exclusion, Negative, Brightening, Darkening, Gray-Level scan, Zoom in and out, Pseudo-color Processing, Organics Enhancement, Alarm sign box of suspicious object, Edge Enhancement. System functions: Power-on self-test, multi-level user management, image management, TIP management, curve diagnosis, keyboard diagnosis, device information query, multi-format image export, OSD operation function, image mirroring, 1-64 times continuous magnification, magnifying glass, Operator training, accurate positioning of package images, empty channel reminders, remote operation software, one-button shutdown, and intelligent roller engine (optional). Detailed Photos
Installation Instructions

Product Parameters

Product highlights *Two generator, two view perspective *Dual energy imaging * Multilingual operation * Automatic built in test and self diagnosis * Secure access Key * Uninterruptable power supply (UPS) * Threat alert and material classification * Auto archiving * Network-Ready * Energy saving design * One key turn off * Drugs and explosives inspection * Indication of the date and time * baggage counter
Physical Specifications
Unit weight (kgs)	1350
Unit size (mm)	3916(L)x1781(W)x1886(H)
after packed in wooden pallet -
Gross weight (kgs)	1650
Packing size	#1: 266*200*180cm
	#2: 115*90*142cm
General Specifications
Tunnel size(mm)	1000(L)x1015(W)
Conveyor Speed(m/s)	0.22
Conveyor height(mm)	309
Conveyor Max Load(kgs)	200
X ray dose per each inspection	Typical 3.5 μGy, guarantee 4.2 μGy
X ray leakage	Typical 1.5 μGy/h, guarantee 2.0 μGy/h
Power Consumption	Max. 1.5KW
Noise	<60 dB
Film Safety	Guarantee ASA/ISO1600 Film
X-ray Generator
Anode Voltage	140KV-160 KV
Anode power	0.4-1.2mA (adjustable)
Generate direct	beam from side & beam from top to bottom
Cooling / Duty Cycle	Oil Cooling /100%
Brand	local made
Performance of X-Ray Generators (top built one)
Penetration	Typical 36mm, guarantee 34mm
Wire Resolution	Typical AWG38, guarantee AWG36
Penetration Resolution	Typical AWG30, guarantee AWG30
Spatial resolution:	Typical dia1.3mm,Vertical: dia1.0mm; Guarantee dia1.3mm,Vertical: dia1.3mm;
Performance of X-Ray Generators (side built one)
Penetration	Typical 38mm, guarantee 34mm
Wire Resolution	Typical AWG38, guarantee AWG36
Penetration Resolution	Typical AWG32, guarantee AWG32
Spatial resolution:	Typical dia1.0mm,Vertical: dia1.0mm; Guarantee dia1.3mm,Vertical: dia1.3mm;
Image System
X-ray Sensor	L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Image Display	High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement	1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall	All preceding images recallable, retrieval
Explosives & Narcotics Detection	Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm	Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection	Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive	Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions	Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications	Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process	24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags
Operating Environment
Operation temperature/Humidity	0ºC-45ºC / 5%-95%(non-condensing)
Storage Temperature/Humidity	-40ºCto 70ºC / 5%-95%(non-condensing)
Operation Power	220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS	15mins, 30mins, 60mins etc, optional
Computer and other
Monitor	High Resolution Color, LCD Accord, 19inch
Hard Disk	SEAGATE 500G 3.5"
CPU	G1610 2.6G
Storage	2GB 1600MHz DDR3 Innodisk
Main board	H61 SYM76993VGGA
Compliance
International	* ISO19001 ; ISO14001 ; OHSMS18001 ; * CE * USA FDA
