High Quality and Precision Titanium Tube ASME Sb338 Pipe Plate Wire
| Negotiable | 50 kg (MOQ) |
Basic Info.
Model NO.
TI-001
Purification Method
Vacuum Melt Process
Preparation Method
Metallothermic Reductio
Application
Catalyst Masses, Energy Materials, Photoelectric Material, Photorecording Material, Medicine, Astronavigation, Computer
Product Type
Rare Earth Metal
Composition
Neodymium
Grade
Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, G
Thickness
0.3-3mm
Standard
ASME Sb338
Transport Package
Wood Box
Specification
2.5-150mm
Trademark
none
Origin
China
HS Code
8108904090
Production Capacity
100ton/Month
Product Description

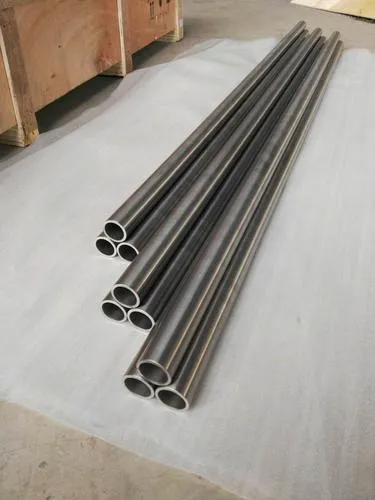

name:Titanium tube
standard:GB/T3625,ASTM SB338, B338,ASTM B862
CERT:ISO9001
OUT DIA: 6MM-89MM
length:according to buyer's request
thickness:0.3-3mm
material:Material:Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, Gr12, Gr16,Gr17, Gr23
delivery time:according to buyer's request or the stock available
packing:export standard package with wooden case
informtaion:we can supply the parts according to buyer's request or specification
Product Parameters
| 1.Chemical requirements | |||||||||||
| Grade | N(≤) | C(≤) | H(≤) | Fe(≤) | O(≤) | Al(≤) | V(≤) | Pd(≤) | Mo(≤) | Ni(≤) | Ti |
| GR1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| GR2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| GR3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
| GR4 | 0.05 | 0.08 | 0.015 | 0.2 | 0.4 | / | / | / | / | / | bal |
| GR5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| GR7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| GR9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| GR12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
| GR23 | 0.05 | 0.08 | 0.012 | 0.25 | 0.13 | 5.5~6.5 | 3.5~4.5 | bal | |||
| 2.Tensile requirements | |||||
| Grade | Tensil strength(≥) | Yeild strength(≥)) | Elongation(≥)%) | ||
| ksi | Mpa | ksi | Mpa | ||
| GR1 | 35 | 240 | 20 | 138 | 24 |
| GR2 | 50 | 345 | 40 | 275 | 20 |
| GR3 | 65 | 450 | 55 | 380 | 18 |
| GR4 | 80 | 550 | 70 | 483 | 15 |
| GR5 | 130 | 895 | 120 | 828 | 10 |
| GR7 | 50 | 345 | 40 | 275 | 20 |
| GR9 | 90 | 620 | 70 | 483 | 15 |
| GR12 | 70 | 483 | 20 | 345 | 18 |
| GR23 | 120 | 828 | 110 | 760 | 10 |
