Customized FRP Fiber Reinforced Fiberglass Pipe Making Machine

Product Description

Product Description

FRP/GRP pipe filament winding machine has six parts, such as inner layer manufacturing machine, computer control adding mortar-winding machine, curing station, repairing machine, mould unloading machine and resin mix station. Its controlling center has been adopted the Taiwan's advanced STD industrial control computer. If the parameter of the wound products being inputted the computer, the design of the linearity for winding of the product will be finished automatically, then controlling the combined movements between the mound rolling speed and the running of the carriage. The pipes produced by the adding mortar-winding machine can decrease the cost and improve the stiffness through adding the mortar without bad influences upon the leak-proof layer and the structure layer. The RPM pipe's cost has decreased 40% than the common FRP pipe; the stiffness has been improved greatly. It has many advantages, such as lightweight, anti-corrosion, lower roughness and proper price. It can be widely used in water supply and drainage, agricultural irrigation, petrochemical industry, ocean development, sewage treatment, etc. The production line annual capacity is 5000t, and reasonable structures, latest design, operate easily, high-grade automation are its characteristics.It got the good valuation from the clients.
Product Parameters
The main parameters
1) The total power: 193.6kw 2) The maximum diameter can be manufactured: DN4000mm 3) The effective length of the pipe: 12000mm 4) The productivity: 1000kg/h 5) The baking board's temperature of curing station: 105~160 ºC 6) The maxi speed of conveying roving: 90m/min 7) The maxi width of roving sheet: 200mm 8) The maxi speed of sand conveyance: 100kg/min 9) The maxi mould-unloading force: 83t 10) The rated drawing force of the capstan: 5t 11) The rated lifting force of the supporting pipe trolley: 40t 12) The rated pressure of the hydraulic system: 16Mpa 13) The central height of mould-unloading machine: 2000mm 14) The central height of the other single machine: 1500mm Note: If the indoor temperature is above 15ºC in winter, the baking board can be power-off, then the total power is 97.6kw

Model	Diameter Range	Pipe Length
QFW-300	DN15-300	1.5m,2m,3m,4m,6m
QFW-1200	DN300-1200	2m,6m,9m,12m
QFW-2500	DN300-2500	2m,3m,4m,6m
QFW-3200	DN300-3200	2m,3m,4m,6m
QFW-4000	DN300-4000	2m,3m,4m,6m

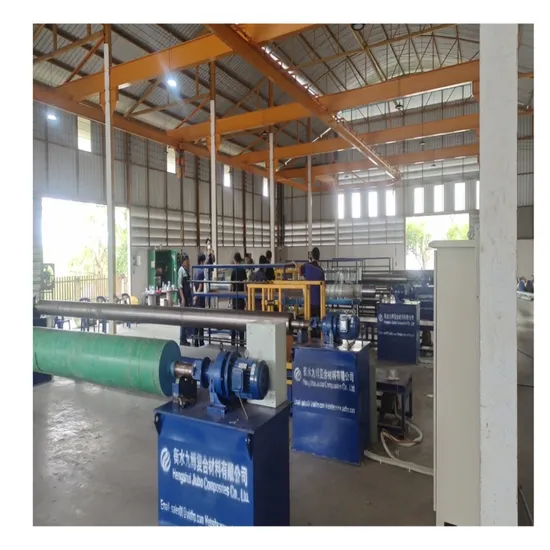

Detailed Photos

Certifications

Packaging & Shipping

FAQ
1. Q: Who are we?A: We are manufacturer, located Hengshui City Hebei Province, China, start from 2016, sell to Eastern Europe(20.00%),Africa(20.00%),Domestic Market(20.00%),South Asia(15.00%),Southeast Asia(15.00%),South America(5.00%),North America(5.00%).Welcome to send your inquiry!2. Q: How about the delivery time?A: Normally, 10-15 days after receiving the deposit to finish the order for a 20' container. Welcome to ask for the detaileddelivery time according to your order quantity!3. Q: What's the price of FRP/GRP pipe filament winding machine?A: Depends on the diameter range and quantity, welcome to inquire!4. Q: How can you guarantee the product quality?A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction beforepacking.5. Q: Can you do OEM for me?A: We accept all OEM orders, just contact us and give me your design,we will offer you a reasonable price ASAP.6. Q: What can you buy from us?A: FRP/GRP Pipe & fittings, FRP/GRP tank & tower, FRP grating, FRP pultruded profiles, FRP SMC water tank, FRP polymerelectrolytic cell, S/F, F/F double wall underground fuel tank, FRP rebar, FRP pipe filament winding machine & technology, FRP tank filament winding machine & technology, FRP molded grating machine & technology, FRP rebar machine & technology, FRP pultrusion machine, FRP polymer electroytic cell machine & technology, Mannheim Process Potassium Sulphate Making Equipment & technology, FRP cable tray, FRP septic tank, Fiber reinforced plastic rod/core, etc,7. Q: What services can we provide?A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES;Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
