60m3 90m3 120m3 180m3 Ready Wet Mix Rmc Stationary Concrete Batching Mixing Plant for Sale

Product Description

Production Description

Stationary concrete batching plant:
Stationary concrete batching plant is widely used for large and medium-sized construction work and infrastructure projects, such as commercial and residential properties, road construction, commercial concrete supply, etc. It is an ideal choice for the production of high-quality concrete with a large amount of demand.
Stationary concrete batching plant is composed of aggregate batching system, aggregate convey system, batching system, mixing system, electrical control system, water supply system, air supply system, additive supply system, cement conveyor belt and cement silo. It suits to building site and merchandise concrete produce.
According to the aggregate feeding method, the stationary concrete batching plant can be categorized into two types: Skip hoist type and belt conveyor type. The capacity of the Skip hoist type concrete batching plant can be 25/35/50/75 m3/h, and the capacity of belt conveyor type concrete batching plant can be 60/90/120/180/240 m3/h.

1. Skip hoist type concrete batching plant
Skip hoist type concrete batching plant Features compared to belt type batching plant:
1.Cost-saving;
2.Easy to install;
3.Easy to move to other job sites;
4.Labor-saving.

Skip hoist type concrete batching plant
Model	HZS25	HZS35	HZS50	HZS75
Production Capacity (m3/h)	25	35	50	75
Concrete Mxier	JS500	JS750	JS1000	JS1500
Aggregate Feeding Mode	Skip Hoist	Skip Hoist	Skip Hoist	Skip Hoist
Aggregate Batcher	PLD800	PLD1200	PLD1600	PLD2400
Max. Aggregate Size (mm)	60/80	60/80	60/80	60/80
Discharging Height (m)	3.8	3.8	4.1	4.1
Aggregate Weighing Accuracy(%)	±2	±2	±2	±2
Cement Weighing Accuracy(%)	±1	±1	±1	±1
Water&Additive Weighing Accuracy(%)	±1	±1	±1	±1
Total Weight(T)	10	13.5	18.5	25
Total Power (kw)	65	75	100	110
Control System	Panel	Computer	Computer	Computer

2. Belt conveyor type concrete batching plant
Belt conveyor type concrete batching plant Features compared to skip hoist type batching plant:
1. higher production efficiency;
2. more environment-friendly;
3. higher quality of concrete.

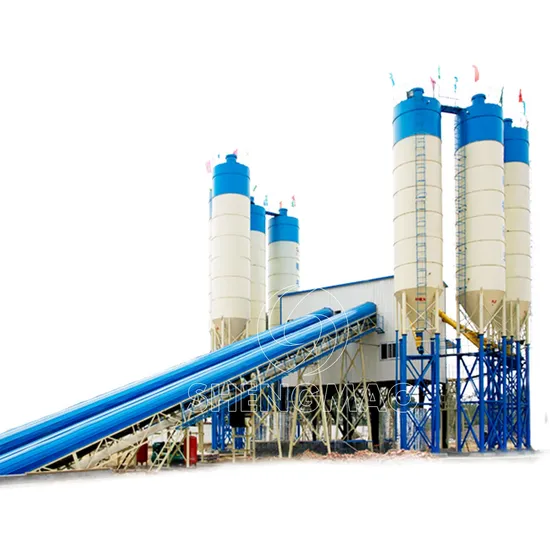

Belt conveyor type concrete batching plant
Model	HZS60	HZS90	HZS120	HZS180
Production Capacity (m3/h)	60	90	120	180
Concrete Mxier	JS1000	JS1500	MAO3000/2000	MAO4500/3000
Aggregate Feeding Mode	Belt Conveyor	Belt Conveyor	Belt Conveyor	Belt Conveyor
Aggregate Batcher	PLD1600	PLD2400	PLD3200	PLD4800
Max. Aggregate Size (mm)	60/80	60/80	60/80	60/80
Discharging Height (m)	4.1	4.1	4.1	4.1
Aggregate Weighing Accuracy(%)	±2	±2	±2	±2
Cement Weighing Accuracy(%)	±1	±1	±1	±1
Water&Additive Weighing Accuracy(%)	±1	±1	±1	±1
Total Weight(T)	28	40	65	88
Total Power (kw)	110	156	200	260
Control System	Computer	Computer	Computer	Computer

3.Foundation-free concrete batching plant:
For traditional concrete batching plant, we need to make big reinforced concrete foundation for each part, especially the cement silo and mixing tower. These foundations are both time-consuming and cost-consuming. In order to solve this problem, we designed the foundation free concrete batching plant for which we don't need to make foundation.
For each part of foundation free concrete batching plant, there is a steel base. We just need to make sure the job site ground is hard and dry, we can place the machine on the ground and start to work directly. In this way, we can save much time and cost to make reinforced concrete foundation. And it is also very easy to disassemble and move to another job site.
Currently, we have 25m3/h, 35m3/h, 50m3/h, 60m3/h, 75m3/h, 90m3/h, 120m3/h and 180m3/h foundation free concrete batching plant. Welcome to contact us for details and quotations.

Foundation-free concrete batching plant
Model	FHZS25	FHZS35	FHZS50	FHZS75
Production Capacity (m3/h)	25	35	50	75
Concrete Mxier	JS500	JS750	JS1000	JS1500
Aggregate Feeding Mode	Skip Hoist	Skip Hoist	Skip Hoist	Skip Hoist
Aggregate Batcher	PLD800	PLD1200	PLD1600	PLD2400
Max. Aggregate Size (mm)	60/80	60/80	60/80	60/80
Discharging Height (m)	3.8	3.8	4.1	4.1
Aggregate Weighing Accuracy(%)	±2	±2	±2	±2
Cement Weighing Accuracy(%)	±1	±1	±1	±1
Water&Additive Weighing Accuracy(%)	±1	±1	±1	±1
Total Weight(T)	10	13.5	18.5	25
Total Power (kw)	65	75	100	110
Control System	Panel	Computer	Computer	Computer

Detailed Images
Our projects
Packing&Shipping
Our Services
Pre-sale Service
1. Answering customers' questions, helping customers choose the most suitable machines;
2. Making design drawings as per customers' requirements; 3. Providing quotations.
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
