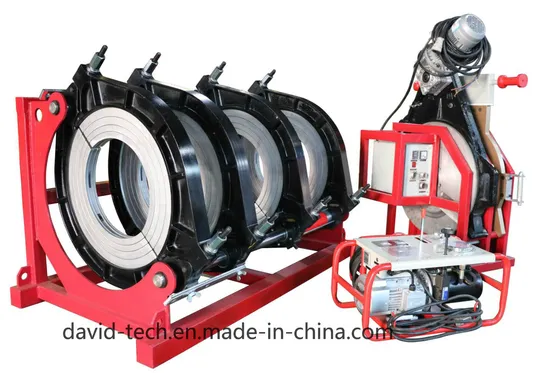

HDPE PE PVC Pipe Hydraulic Butt Fusion Welding Machine
| US$1,500.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DN63-1200MM
Control
Automatic
Frequency Range
Intermediate Frequency
Electric Current
AC
Style
Portable
Power
Electric
Transport Package
Packing
Specification
DN32-DN1200
Trademark
david-technology
Origin
Shandong
Production Capacity
10000sets/Year
Product Description
HDPE PE PVC Pipe Hydraulic Butt Fusion Welding Machine1: Feature: The raw material of the machine frame is aluminum ZL104, it is light but strong, is one of the best material for machine. The main electrical apparatus elements are best of china, many are imported from abroad. Removable PTFE coated heater with separate temperature control system, the temperature can be controlled to a minimum range. The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect. 2:Specification:
| Model | DT200 |
| Welding range(mm) | 63mm-75mm-90mm-110mm-125mm-140mm-160mm-180mm-200mm |
| Heating plate temperature | 270°C |
| Heating plate surface temperature(170-250°C) | <±5°C |
| Pressure adjustment range | 0-6.3MPa |
| Working Voltage | 220V,50Hz |
| Heating plate power | 1.5KW |
| Cutter power | 0.85KW |
| Hydraulic station power | 0.75KW |
| Total Power | 3.1KW |
| Model | DT250 |
| Welding range(mm) | 110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm |
| Heating plate temperature | 270°C |
| Heating plate surface temperature(170-250°C) | <±5°C |
| Pressure adjustment range | 0-6.3MPa |
| Working Voltage | 220V,50Hz |
| Heating plate power | 2.1KW |
| Cutter power | 1.36KW |
| Hydraulic station power | 0.75KW |
| Total Power | 4.21KW |
| Model | DT315 |
| Welding range(mm) | 160mm-180mm-200mm-225mm-250mm-280mm-315mm |
| Heating plate temperature | 270°C |
| Heating plate surface temperature(170-250°C) | <±5°C |
| Pressure adjustment range | 0-6.3MPa |
| Working Voltage | 220V,50Hz |
| Heating plate power | 3.1KW |
| Cutter power | 1.36KW |
| Hydraulic station power | 0.75KW |
| Total Power | 5.21KW |
| Model | DT450 |
| Welding range(mm) | 280mm-315mm-355mm-400mm-450mm |
| Heating plate temperature | 270°C |
| Heating plate surface temperature(170-250°C) | <±7°C |
| Pressure adjustment range | 0-6.3MPa |
| Working Voltage | 380V,50Hz |
| Heating plate power | 5.2KW |
| Cutter power | 1.5KW |
| Hydraulic station power | 1.5KW |
| Total Power | 8.2KW |
| Model | DT630 |
| Welding range(mm) | 400mm-450mm-500mm-560mm-630mm |
| Heating plate temperature | 270°C |
| Heating plate surface temperature(170-250°C) | <±7°C |
| Pressure adjustment range | 0-6.3MPa |
| Working Voltage | 380V,50Hz |
| Heating plate power | 9.2KW |
| Cutter power | 1.5KW |
| Hydraulic station power | 1.5KW |
| Total Power | 12.2KW |
| Model | DT800 |
| Welding range(mm) | 630mm-710mm-800mm |
| Heating plate temperature | 270°C |
| Heating plate surface temperature(170-250°C) | <±7°C |
| Pressure adjustment range | 0-16MPa |
| Working Voltage | 380V,50Hz |
| Heating plate power | 12.5KW |
| Cutter power | 1.5KW |
| Hydraulic station power | 1.5KW |
| Total Power | 17KW |
| Model | DT1000 |
| Welding range(mm) | 710mm--800mm--900mm--1000mm- |
| Heating plate temperature | 270°C |
| Heating plate surface temperature(170-250°C) | <±10°C |
| Pressure adjustment range | 0-16MPa |
| Working Voltage | 380V,50Hz |
| Heating plate power | 21.7KW |
| Cutter power | 3.0KW |
| Hydraulic station power | 3.0KW |
| Lifting power | 1.1KW |
| Total Power | 28.8KW |
| Model | DT1200 |
| Welding range(mm) | 800mm-900mm-1000mm-1200mm |
| Heating plate temperature | 270°C |
| Heating plate surface temperature(170-250°C) | <±10°C |
| Pressure adjustment range | 0-18MPa |
| Working Voltage | 380V,50Hz |
| Heating plate power | 30KW |
| Cutter power | 3.0KW |
| Hydraulic station power | 3.0KW |
| Lifting power | 1.5KW |
| Total Power | 37.5KW |
3: Easy to use.
1. Lower start-up pressure make the small diameter pipe weld more reliable.
2. Welding position can transform that it is convenient for welding all kinds of pipe fittings.
3. Standalone dual channel timer can record both of heat and cooling hours, when timing is over, the timer will give an alarm.
4. High-precision shockproof pressure gauge with large dial is easy to read.
4:Service.
1. One year warranty, life-long maintenance.
2. In warranty time, if non-artificial reason damaged can take old change new for free. Out of warranty time, we can offer maintenance service (charge for material cost).
FAQ
Q: What is the Raw material ?
A: 100% virgin raw material.
Q: What is your MOQ?
A: As customers' requests.
Q: why choose us?
A: We are a professional manufacturer with competitive price, good quality and fast delivery time.
Q: How to buy the product?
A: Send email to me, we will reply to you within one day.
Q: Can you make special Design and logo on product?
A: Yes, very easy.
Please contact me for more info today!
Qingdao David Technology Co., Ltd.
Sales Manager : Mr. Dave Liu
