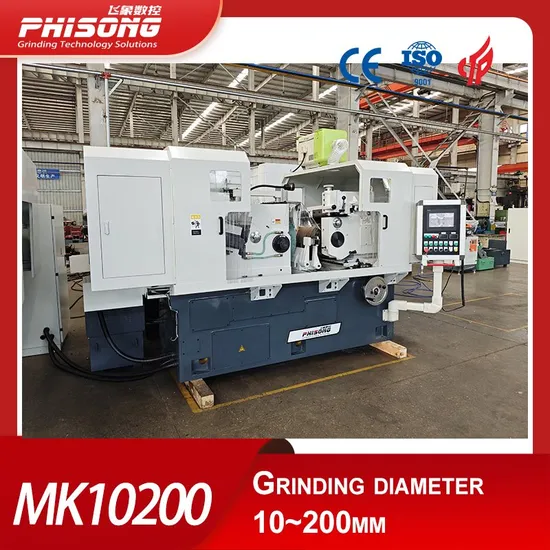

China Resonable Price Centerless Grinding Machine Cylindrical Grinder for Shafts

Product Description

Product Description
Casting, natural aging and artificial heat treatment for reasonable deformation and better durability.
1.2 GW and RW(Regulating wheel)
GW 600mm in diameter, 400mm wheel width for larger grinding amount and higher efficiency.
GW and RW movable, double supported structure, both double supported structure , with better reliability and stability.

1.3 Feeding Schneberg linear guide-rail for motion sensitivity, easy micron feed, vibration resistance.
Servo motor drives ball-screw through shaft coupling, min. feeding amount 0.001m
1.4 Dressing for GW and RW

GW dresser: Servo motors drive ball-screws for GW dresser feeding and reciprocating.
RW dresser:Hydraulic transimission for reciprocating,step-less speed adjusting, manual dial for RW dresser feeding
1.5.Cooling
Cooling tank with magnetic coolant separator.
1.6.Electric Converter for RW motor, step-less speed adjusting.
Operation panel with dials and touch screen for
grinding, dressing,feding, etc. Adjusting.
Mitsubishi PLC control system, Siemens for optional



1.7.Technical Data:

1. Plunge-feed
(1) Grinding diameter	10~200mm
(2) Grinding length	390mm
2. Through-feed
(1)Grinding diameter	10~200mm
(2)Grinding length(standard work rest)	300mm
3. Grinding Wheel Spec.	P600×400×305mm
4. Regulating Wheel Spec.	P350×400×203mm
5. Grinding Wheel Speed	1114r/min
6. Regulating Wheel Speed(Stepless)
(1) Working Time	12~80r/min
(2) Dressing Time	80~200r/min
7. Transverse displacement of regulating wheel frame	-15~+15mm
8. Swiveling Angle of Regulating Wheel
(1) Vertical	-2°~+4°
(2) Horizontal	-2°~+4°
9. GW Frame Min. Feed Amount	0.001mm
10. RW Frame Feed Amount
(1) Handwheel feed per revolution	1mm
(2) Handwheel feed per cell	0.01mm
11. GW Dresser Feed Amount	0.01mm
12. RW Dresser Feed Amount	0.01mm
13. Swiveling Angle of RW	-2°~+4°
14. Height from center line of GW & RW to work rest	290mm
15. Motor power
(1) GW motor	30KW
(2) RW motor	3KW
(3) Water pump motor	0.25KW
(4)Lubrication pump motor	0.12KW/pcs
(5) Hydraulic pump motor	0.75KW
(6) Magnetic motor	0.04KW
16. Power supply	3N 50HZ 380V
17.Machine dimension(L*W*H)	3600×1850×1720mm
18.Machine weight	about 9000Kg

3.Main Accessories:

Name	SPEC.	QTY	Unit	Brand
Control system PLC	Q sery	1	set	Mitsubishi
Servo motor		3	set	Mitsubishi
Operation display screen	10'	1	set	Weilun
Ball screw		3	set	Nanjing
Converter for RW	3.7KW	1	pc	Mitsubishi
RW motor	2.2KW	1	pc	Wannan
GW motor	30KW	1	pc	Wannan
low-voltage apparatus		1	set	Schneider
