Auto 3 5 7 Ply Corrugator Cardboard Box Production Line with Automatic High Speed Corrugated Paper Splicer Machine

Product Description

Auto 3 5 7 Ply Corrugator Cardboard Box Production Line with Automatic High Speed Corrugated Paper Splicer Machine
RG-1-1000 top(core)paper preheater
RG-3-1000 triple preheater
structural features:
★preheat roller accord the pressure container national standards,and enclose the pressure container certificates and inspection certificate.
★Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable.
★electric adjustment angle, and angle can rotation adjustment the preheat area in the range of 360°.
technical parameters: 1.diameter of preheat roller:¢1000mm 2. angle shaft diameter:¢114mm×2
3,working power:380V 50Hz
4,Motor power:250W short(S2)working system
ZJ-V6 hydraulic shaftless mill roll stand
structural feature:
★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
★brake adjustable adopts multipoint braking system.
★every stand matched two sets paper car , and they can paper on the both sides at the same time.★ tooth jammed with dual-stage head and jammed the first three \ four inches dual-stage.
technical parameters:
1.Backstands action: full hydraulic operation 2,the range of clamping paper:MAX2500mm MIN800mm
3,clamping diameters:MAX¢2500mm MIN¢350mm 4,Unilateral maximum load: the MAX.5000Kg
5,Paper holder spindle diameter:¢270mm
6,Working air pressure(Mpa):0.4---0.8Mpa
7,working power:voltage 380V frequency 50Hz
Hydraulic system parameters: 1.working pressure (Mpa):16---18Mpa 2.hydraulic cylinder working range(lifting):¢125×440mm
3.hydraulic cylinder working range(clamping /Traverse):¢80×1300mm
4.hydraulic station motor power:4KW short (S2)working system rated voltage and frequency:380V 50Hz
5.hydraulic station solenoid valve working voltage:220V 50 Hz
SF-405E Multi-cassette positive pressure single facer
structural feature:
★design speed:250m/min.
★effective width:2500mm.
★main corrugating roller:¢405mm(According flute differ),pressure roller¢495mm,preheat roller¢420mm.
★using negative pressure design, lower heat consumption, helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, because the pressure evenly, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating.
★quickly change rollers in 15 minutes, while change corrugated roller with the electric trolley loading,put into the machine,and air pressure system will lock it,fixed to the machine base,only need a few buttons can complete the replacement quickly and easily.
technical parameters: 1.working effective width:2500mm 2,operation direction:left or right(Determined in accordance with the customer's facility)
3,design speed:250m/min
4,temperature range:160-200ºC
5,air source:0.4-0.9Mpa
6,steam pressure:0.8-1.3Mpa
7,corrugate flute:(UV type or UVV type)
roller diameter parameters: 1.Main corrugated roller diameter: ¢405mm vice corrugated roller diameter:¢346m 2.pressure roller diameter: ¢495mm glue roller diameter:¢318mm 3.Fixed paste roller diameter: ¢173mm preheat roller diameter:¢400mm

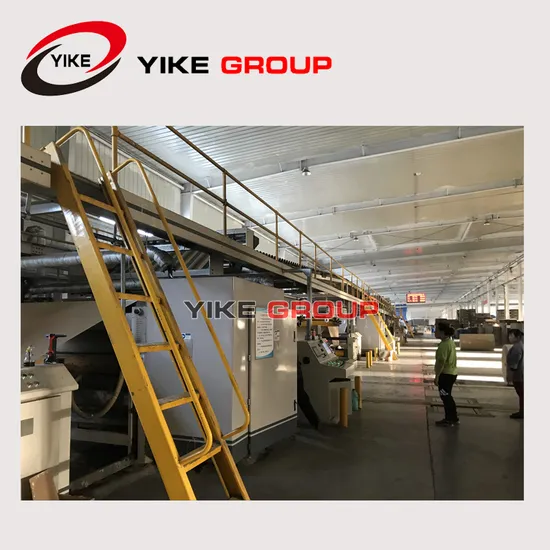

TQ-A heavy type conveyor bridge
structural feature:
★This portion of the main frame with channel, beam, angle and so connected together.
★Both sides are equipped with safety barriers and security herringbone pedal operation plane is equipped with safety ladder, ensure staff safety and ease of operation.
★Independent frequency motor lift mechanism, PVC conveyor belt, single watt cardboard wavy rule stable.
★All roller surface after grinding hard chrome plating.
★Vacuum tension control, suction tube 5-inch, plus regulating valves, air flow infinitely adjustable.
★Electric correction device II sets shutter correction double guide column positioning, screw drive, fast and accurate positioning, walking steadily.
technical parameter :
1,working width:2500mm
2,operation direction: left or right(Determined in accordance with customer plant)
3,highest height:4700mm
4,working speed:250m/min
roller diameter parameters: 1.upper paper roller and tensioning roller diameter: ¢130mm 2.Conveying roller diameter: ¢180mm 3.over paper roller and guide paper roller diameter:¢111mm On paper towing shaft diameter:¢110mm
