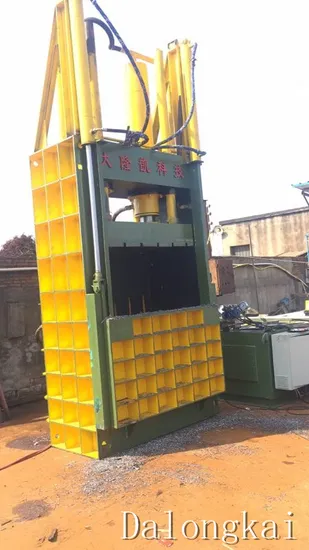

Y82-63 Hydraulic Vertical Baling Machine

Product Description

Applications:
1. Mainly used for compressing and baling of the woven bags/cloth, waste paper, scrap paper convenient for transportation and storage.
2. Mainly used for compressing and baling of the wool/wool ball.

Features:
1. Baling press pressure ranges from 15tons to 400tons. It has a complete range of specifications.
2. Hydraulic pressure drive, using the overhead type oil cylinder and it can work without underground foundation.
3. All the oil cylinders adopt imported sealing rings. This makes it have reliable quality and prolong service life.
4. Package block size and the size of the compression chamber can be customized according to customer's request.
Technical Parameters

Attributions	Model Number: Y82-250~Y82-1600
	Certification: SGS
	Place of Origin: Jiangsu P.R. China
Commercial terms	Minimum Order Quantity: 1 Set
	Price: Negotiable
	Payment Terms: 30% T/T In Advance
	Supply Ability: 15set /month
	Delivery Time: as your requirement
	Packaging Details: Seaworthy packing
	After-sales Service : Engineers are available to overseas service
Specification	Baler for paper/plastic No. Model Nominal Force Chamber Size Bale Section Power Bale discharging method 1 Y82-25T 250KN/25t 1080*580*1500 mm 1080*580mm 15KW Turn-out 2 Y82-63T 630KN/63t 1080*750*1500 mm 1080*750mm 15KW Turn-out 3 Y82-100T 1000KN/100t 1100*700*1600 mm 1100*700mm 22KW Turn-out 4 Y82-160T 1600KN/160t 1100*700*1600 mm 1100*700mm 22KW Turn-out 5 Y82-200 2000KN/200t 1500*1000*1600 mm 1500*1000mm 37KW Turn-out 6 Y82-250 2500KN/250t 1500*1000*1600 mm 1500*1000mm 44KW Turn-out or PLC control 7 Y82-315 3150KN/315t 2200*1100*3000 mm 2200*1100 60KW 8 Y82-400 4000KN/400t 1500*1000*1600 mm 1500*1000 90KW

Factory
Certification
FAQ
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu province,214429, P.R China
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 20 years, export proportion 50~60%.
Q4:How can I trust your company?
A: With 20-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment.
2. Welcome to inspect anytime. We are near to Shanghai Pudong airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
