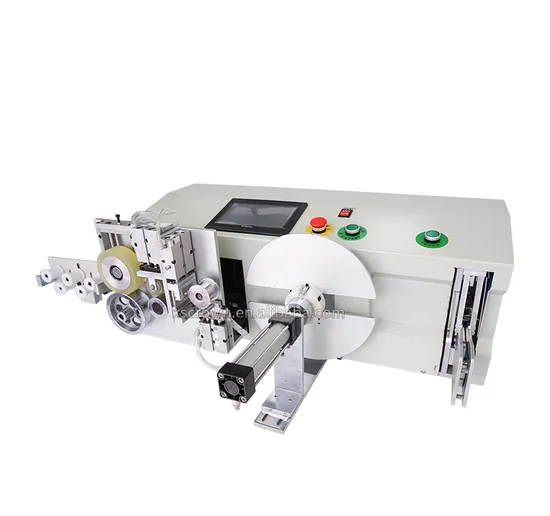

Factory Supply Wire Cable Semi-Automatic Counting Meter Cutting Winding and Tying Machine with Cheap Price
| US$1,998.00-2,968.00 | 1 set (MOQ) |
Basic Info.
Model NO.
WL-100S
Certification
CE
Model
Wl-S100
Type
Desk/Bench Top
Bundling Diameter
18 - 45 mm
Max Coil Weight
1.5 Kgs
Power
AC220V 50Hz/110V 60Hz
Power Rating
200 W
Weigth
80kg
Dimension
83*30*55cm
Twist Shape
Round O&Long&8 Shaped
Transport Package
Wooden Case
Specification
56*55*46cm
Trademark
Crown
Origin
China, Jiangsu
HS Code
8479811000
Production Capacity
3-10meters/Min
Product Description
Product description:Automatic Wire Winding Machine with Counting Meter Feature
| Model | WL-S100 | WL-S200 | WL-S300 | WL-S400 |
| Winding cycle | 1-999 cycle | |||
| winding speed | 1-4 cycle/s | |||
| Avaliable wire size | Ø2-7mm or Ø 6-10mm | |||
| Winding inner Diameter | Adjustable from 80 to 250mm | Adjustable from 60-190mm | ||
| Winding outer Diameter | Max 300mm | Max 260mm | ||
| Avaliable wire width | 10-70mm | |||
| Suitable wire shape | Round wire, flat/ribbon wire, 2 pin double, etc | |||
| Binding diameter | ~ | ~ | 5-28mm/15-40mm | |
| Suitable cable tie length | ~ | ~ | 75-135mm/120-180mm | |
| Cable tie twist cycle | ~ | ~ | 2-8cycle | |
| Diamension | 1100*1150*430mm | 1400*1500*430mm | ||
| Net weight | 60KG | 75kg | ||
| Power | AC220V 50hz/110v 60HZ | |||
| Power Rating | Max 1000W | |||
| Wire order | Unordered | Ordered | Unordered | Ordered |
Features:
This automatic cable winding and tying machine features counting meter function. It is suitable for processing of AC power cord, DC power cord, USB cable, video cable, and HDMI high-definition cable with different diameters. Function: counting meters, winding, cutting and tying cables and wires;
Suitable for processing of AC power cord, DC power cord, USB cable, video cable, and HDMI high-definition cable with different diameters;
The finished line is very neat, a good helper for bundling wires.
Packing & Shipping: For small and light products packed by cartons,for large and heavy products packed by wooden
Product show:
Machine processing samples:
Related products:
FAQ:
| 1.How to order? |
| Please contact my Email for much more details, you can place order with us directly or through ****** online transcation after confirmation. |
| 2.What's your payment terms? |
| We accept trade assurance order, T/T,L/C, western union, Paypal etc. |
| 3.How long does the production time? |
| Generally 3~7 days, if there's customized model or other request will be adjusted. |
| 4.How do you packaged the products? |
| Small size machine, we will package it in standard neutral carton. Larrge size machine, we will package it in standard wooden cases. |
| 5.What can you provide for us? |
| Our service We provide: · Best products and factory price. · On-time delivery and the shortest delivery time. · 1year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free and you need to pay for the delivery. · OEM and customized service. · User manuals will go with relative machines. · QC: All products will be checked before delivery. · Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers · Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance. · Operation Guidance: If you have any problem with operation, please feel free to contact us. |
Company information:
Certificate:
Contact:
Pls contact Angela Zhou for price inquiry or any other questions/doubt.
