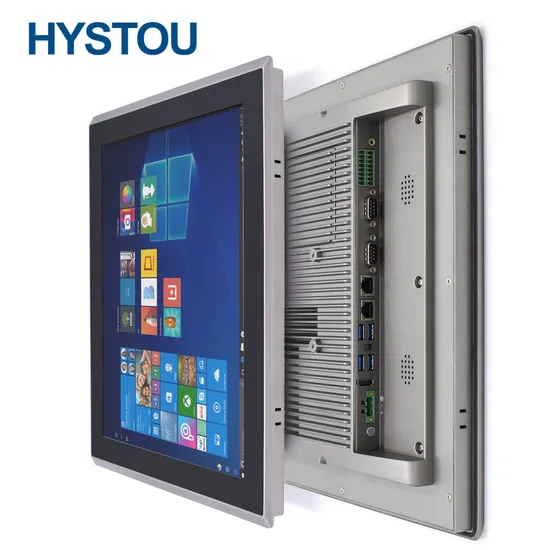

Hystou 15.1 Inch All in One Touch Capacitive Screen Intel I7 LCD Panel Industrial Tablet PC

Product Description

Product Description Fully enclosed design, IP65 grade water-proof and dust-proof, fanless design, silent and 24*7 hours stable working, 9V to 36V wide voltage power input, suitable for most medical requirement. Onboard 4G memory chip, accept OEM to 1 DDR4 memory slot, support max 8GB RAM. Company Introduction Hystou Technology Co Limited is a reliable manufacturer and exporter of industrial panel PC. Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market. Warmly welcome every customer to visit us, and hope we both sides could create a brilliant future with our efforts. OEM and ODM orders are welcomed. Product Usage

Processor	Intel Celeron J1900/ Intel Core i7-4578U
Memory	Onboard DDR3L 8G memory
Storage	support 1*MSATA SSD+1*SATA HDD/SSD+1*M.2 SSD(only for core series)
Lan	2*GbE RJ45 Intel@i211-AT
	3*USB 2.0,1*USB 3.0,inside 1*USB2.0 dongle interface
	2*DB9-RS232/422/485 COM
	2*3-wire RS232/485 COM phoenix terminal
	2*3-wire RS232 COM phoenix terminal
Interface Port	1* Audio line-out
	2*8Ω 1W Speak out(optional)
	1*phoenix terminal DC 9-36V Input
	1*AT/ATX Switch
	1*HD output
	1*14bit GPIO(Optional)
WIFI	1x full height Mini PCI-E,onboard SIM slot, support 3G/4G
Resolution	16.2M Color, 1280*800 ( 1280*600 optional)
Panel	TFT LCD (support 10.1" 12.1" 15.1" 17")
Backlight Hour	(LED )30,000
Brightness	400cd/m²
Visual	-85~85°(H) -85~85°(V)
Type	5 wire resistance type
Dimen	289.53*192.44*48.3MM(for 10.1")
Weight	NW: 2.7KG, GW: 4.5kg(10.1" weight, also support 12.1" 15")

Packing&Shipping Packing List: 1*15.6 inch aio pc.
1*Power adapter, 1*Touch pen, 1*touch drive, wall mounting bracket
Mounting (options)
1) Provide wall brackets for wall-mounting, VESA 75*75mm
2) Provide stable metal holder to support the PCs FAQ 1. Can you put my brand name (logo) on these products?
Yes, we can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
2. What payment method do you accept?
T/T,Western Union,PayPal.
3. What is the Minimum Order Quantity(MOQ)?
We can sell one piece sample for your test.
4. What is the lead time of your products?
1-3 days for one sample, 15 working days for a large quantity.
5. How many years for the product warranty?
3 years, we have a professional team work for after-sales services, please kindly feel free to contact us if any questions.
6. What are the shipping methods for it?
We can ship by International express, like DHL, UPS, Fedex, TNT, etc; or by Air/ Sea, etc.
7. What kinds of customization can you do?
We can do the products as per your configuration of CPU, RAM, hard disks, Wifi, I/O ports, color, size, customized OS, logo, etc.
8. Can you equip the devices with related products or services?
Yes, we can offer you mouse and keyboard combo, HD cable, genuine win 10 license, external CD-ROW, USB Hub, BT dongle, etc.
9. What is HS code of Hystou mini pc?
8471494000
