Wss 100mm Bimental Thermometer OEM Measurement Range
| US$8.00-15.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WSS100A
Display
Pointer
Material
Bimetallic
Case
Stainless Steel 304
Lens
Tempered Glass or Safety Glass
Measurement Element
Stainless Steel 304
Connection
Stainless Steel 304
Thread
1/2PT or 1/2NPT or 1/2g or M20*1.5
Case Filling
Dry or Glycein or Silicone
Delivery Time
3-15 Working Days
Customized Service
OEM
Qualified Certificates
Ce, Ks, ISO9001
Temperature Range
-40 Degree C to 600 Degree
Transport Package
1PC in a White Inner Box, 20PCS in a Carton
Specification
0.3kg/pcs
Trademark
POWER or customer logo
Origin
China
HS Code
90262090
Production Capacity
50000pieces/Month
Product Description

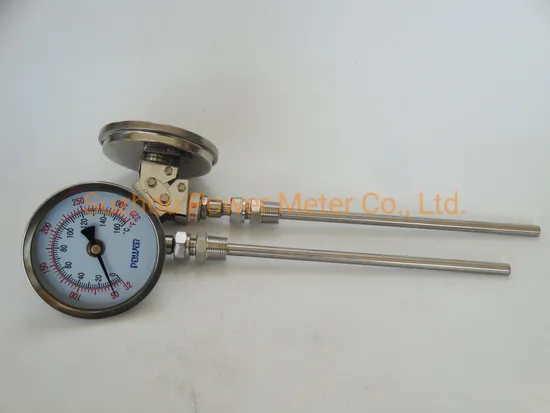

1. Product series: pressrue gauge manufacturer of 4 inch 100mm Dial full stainless steel every angle bimental thermometer (temperature gauge) 0-160 degree C/ F2. Dial size: 2.5'' (63mm), 3'' (75mm), 4''(100mm), 4.5''(125mm), 6''(160mm)
3. Standard: JB/T8803-1998
4. Qualified Certification: ISO9001, CE, KS
5. Warranty: 12 months
6. Delivery time: 15 working days (or negotiated)
7. OEM Pressure gauges/ manometers / bimental thermometer / temperature gauges
| Dial size/ diameter | 4''(100mm) |
| Case | stainless steel 304 |
| Bezel | stainless steel 304 |
| Lens | safety glass/ tempered glass / PC lens |
| Dial plate | aluminum |
| Stem material | stainless steel 304 |
| Stem Outer size (OD) | 6mm, 8mm |
| Stem Length | as customer request |
| Connection | stainless steel 304 |
| Movement | Bi-metallic coil |
| Mounting type | bottom type/ back type/ every angle |
| Thread size | 1/4PT, 1/4NPT, 1/4G(=1/4BSP), M14*1.5 for dial size 50mm, 63mm, 75mm 1/2PT, 1/2NPT, 1/2G(=1/2BSP), M20*1.5 for dial size 50mm, 63mm, 75mm |
| Scale range | from -40 degree C to 600 degree C (as request) other scales like degree F |
| Case filling | Dry only |
| other | with recalibrator-reset screw or without |
| Brand/LOGO | POWER or customized |
| Transport package | Cartons |
| Certificates | CE, ISO9001, KS |
| Accuracy | 1.0 for dial size 100mm, 160mm 1.6 for dial size 63mm, 50mm... |
If you have another question, pls feel free to contact us as below:
Contact person: Merry Zou
Mobile: +86-15262457335
