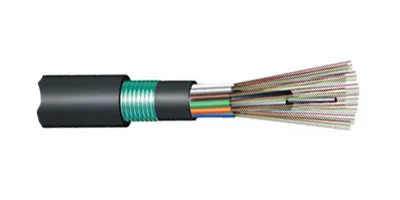

GYTA53 Outdoor Direct Buried Armored/Armoured Double Jacket Underground Optic/Optical Fiber Cable

Product Description

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
(A) Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter mm	Cable Weight kg/km	Tensile Strength / Long/Short Term N	Crush Resistance / Long/Short Term N/100mm	Bending Radius / Static /Dynamic mm
GYTA53-2~6	2~6	1	5	14.5	209	1000/3000	1000/3000	10D/20D
GYTA53-8~12	8~12	2	4	14.5	209	1000/3000	1000/3000	10D/20D
GYTA53-14~18	14~18	3	3	14.5	209	1000/3000	1000/3000	10D/20D
GYTA53-20~24	20~24	4	2	14.5	209	1000/3000	1000/3000	10D/20D
GYTA53-26~30	26~30	5	1	14.5	209	1000/3000	1000/3000	10D/20D
GYTA53-32~36	32~36	6	0	14.5	209	1000/3000	1000/3000	10D/20D
GYTA53-38~48	38~48	4	1	15.4	234	1000/3000	1000/3000	10D/20D
GYTA53-50~60	50~60	5	0	15.4	234	1000/3000	1000/3000	10D/20D
GYTA53-62~72	62~72	6	0	15.9	244	1000/3000	1000/3000	10D/20D
GYTA53-74~84	74~84	7	1	18.0	297	1000/3000	1000/3000	10D/20D
GYTA53-86~96	86~96	8	0	18.0	297	1000/3000	1000/3000	10D/20D
GYTA53-98~108	98~108	9	1	19.4	338	1000/3000	1000/3000	10D/20D
GYTA53-110~120	110~120	10	0	19.4	338	1000/3000	1000/3000	10D/20D
GYTA53-122~132	122~132	11	1	21.3	392	1000/3000	1000/3000	10D/20D
GYTA53-134~144	134~144	12	0	21.3	392	1000/3000	1000/3000	10D/20D
GYTA53-146~216	146~216			21.3	395	1000/3000	1000/3000	10D/20D

Storage/Operating Temperature : -40ºC to + 70ºC
