Three-Axis Precision Feed Speed Range Large RAM Milling Machine

Product Description

Product Description

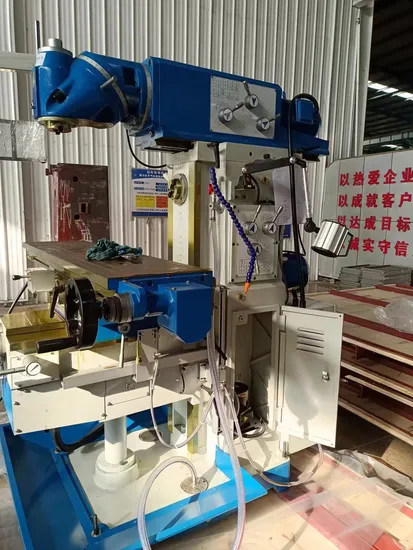

Tengzhou XILI Manufacturer Milling Machine XQ6432
1.Rotary table(±45°) is optional accessories
2.LED lamp is optional accessories
3.DRO is optional accessories
4.300mm worktable can be ordered at special request
5.Finely graduated feeds in all axis,driven by servomotor
6.Horizontal spindle with large speed range,suitable for low-speed heavy load process and high-speed precision process
Detailed Photos
The machines have a wide application for single-piece or small batch production in manufacturing, instruments, construction, maintenance and repair workshops and so like industries.
Featuring optimum structure, easy operation and less maintenance, the machine can also be equipped with DRO system for higher positioning and efficiency in batch production.

1. Universal swivel head, can swivel 360 degree.
2. ISO50 vertical spindle taper 3KW motor.
1. X Y Z 3-axis automatic feed and rapid feed by servo motor, easy operating and low trouble rate. 2. It`s our patented product, started to produce in 2007.
1. Rotary table 45 degree is optional. 2. The lifting part with grinding surface, metal texture, and there is no defect in the casting.
1. We pay attention to every details.
2. All the oil plugs are made by stainless.
3. All the oil window made by copper.
Specification
Specifications of Tengzhou Xili Manufacturer Milling Machine XQ6432

Specifications	Unit	XQ6432	XQ6432A	XQ6432B	XQ6432C
Table size	mm	1270*320	1370*320	1270*320	1370*320
T-slots(NO./width/pitch)	mm	3*14*80
Max table travel - X/Y/Z	mm	720/300/400	820/300/400	900/380/400	1000/380/400
Spindle taper	-	7:24 ISO40
Max rotary angle of table		-
Distance between spindle center line and table surface	mm	75-475
Distance between spindle nose and table surface	mm	260-660
Distance from horizontal spindle center line to arm surface	mm	180
Spindle speed range	r.p.m	(V)11 steps 45-1660; (H)12 steps 35-1500
Arm travel	mm	460
Table feed(X/Y/Z)	mm/min	X Y:30-830 Z: 23-625
Table rapid speed		1335/1335/1000
Main motor power	Kw	3
Torque of X/Y/Z axis AC servo motor	Nm	10
Cooling pump motor power	W	40
Flow of cooling pump	L/m	12
Overall size	mm	1720*1680*1860	1820*1680*1860	1720*1680*1860	1820*1680*1860
Net weight	Kg	1875	1925	1925	1975

Certifications

Packaging & Shipping
Delivery time: generally 30-45 days production time after confirmation of order
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Packing size: 2100 x 2200 x 2250mm (L/ W / H), can be delivered in 20GP container


Company Profile
Our factory is located in Tengzhou City, with nearly 20 years history & more than 300employees.Products include:Gantry machining center.VMC machining center,conventional manual mills (vertical, horizontal, universal, knee-type, bed-type, gantry-typeetc.)
The main products have developed to 7 series in recent years: CNC Planer-type machining center CNC vertical machining center,CNC horizontal machining center series,CNC milling machine series,knee-type milling machine series,planer-type milling machine series,single-face milling machine series,vertical drilling machine series,drilling and milling machine series. Altogether there are more 40 specifications. Some products have national patents. In 2002, we passed the ISO9001 quality guarantee system certification, and got the certificate of CE in 2007. lt was awarded Shandong high technology company in 2010.
We are always pursuing the following notions of service and management: "customers first, quality first", "active improvement, winning through innovation", "credit is the basis".
Focusing on talents, we create the future relying on the science and technologies.
Focusing on quality, we rely on the customers to get common development.

After Sales Service
We will supply enough spare parts and accessories with our Manual Mill Milling Machine when shipment. Within one year after receiving our manual mill milling machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail free of charge.
FAQ
1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videosOther payment terms are also acceptable after discussion.
3. What is the trade terms ?
Jsually is FOB.
Others like CIF,CFR,EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within waranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5.What kinds of machines do you supply?
Company specialized in producing CNC & manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Simple NC milling machine
Conventional manual milling machines (Vertical, Horizontal, Universal, Turet mil, Swivel head mil, Power sliding ram type, Bed type,Tool milling machine, Gantry type etc.)
6.How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history. covers an area of about 50000 square meters,with 20 million CNY fixed assets and more than 300 employees.
Xili Machine Co.,Ltd. is a ISO9001 company, all products are with CE certificate.
Welcome your inquiry and visiting.
If you need any further information, feel free to contact us.
