China One Year Koten by Strong Seaworthy Wooden Cases Automatic Label Stripping Machine
| US$10,000.00-15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
STCB-680/920/1080
PLC
Yes
Servo Motor
Two Sets
Workers Requirement
1-2
Transport Package
by Strong Seaworthy Wooden Cases
Specification
Export Standard
Trademark
Koten
Origin
China
Production Capacity
50sets/Month
Product Description
Process.
Introduction.

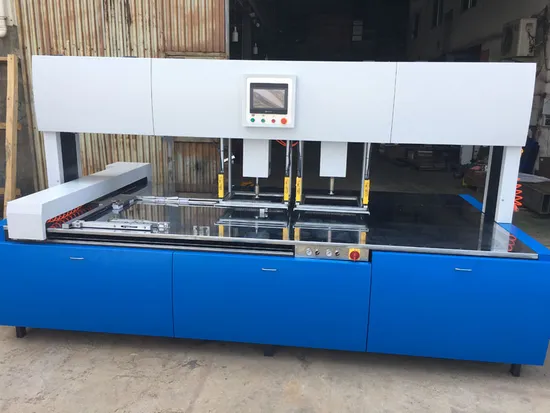

This automatic label dismantle machine is mainly used for taking off the material after die cutting, like hangtags, label, etc. For the clothes, glass industry. With much higher efficiency, and higher production than that by hand.
Finished Samples For Spain Client.
Main specifications.
Model | STCB-680 | STCB-920 | STCB-1080 |
| Max. sheet size(X) | 680mm | 920mm | 1080mm |
| Max. Sheet size(Z) | 460mm | 650mm | 780mm |
| Max. pile height | 120mm | 120mm | 120mm |
| Min. pile height | 40mm | 40mm | 40mm |
| Min. sheet size(X) | 450mm | 450mm | 450mm |
| Min. sheet size(Z) | 320mm | 320mm | 320mm |
| Height of worktable | 850mm | 850mm | 850mm |
| Max. label size | 230x230mm | 320x320mm | |
| Min. label size | 40x40mm | 40x40mm | 40x40mm |
| Max. speed | 25times/min | 25times/min | 25times/min |
| Max. pressure | 70bar | 70bar | 70bar |
| Power | 2.5kw | 4kw | 4kw |
| Voltage | 380V | 380V | 380V |
| Wire Requirement | 1.5mm | 2.5mm | 2.5mm |
