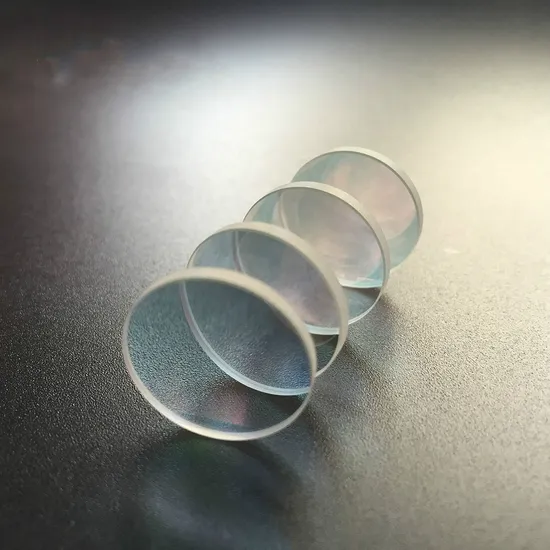

Convex Glass Lense Optical Lens

Convex Glass Lense Optical Lens

US$4.98-42.88 10 Pieces (MOQ)

Basic Info.

Model NO.
yt004
Transmittance
>95%
Shape
Single-lens
Material
Optical Glass
Lenses Color
Clear
Certification
RoHS
Customized
Customized
Coating
HMC
Centration
1 Arc Min
S/D
60-40
Flatness
L/2
Color
Transparent
Dimention
3-450mm
Dimention Tol
0.1mm
Transmission
92%
Transport Package
Box
Specification
OEM
Trademark
Yutai
Origin
Changchun
HS Code
9001909090
Production Capacity
40000/Year

Packaging & Delivery

Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
1.000kg

Product Description


Our precision optical lenses are made from materials such as BK7(K9), fused silica, IR grade calcium fluoride, and zinc selenide. We offer Spherical, Aspheric, Cylindrical, Achromatic, Objective, and Miniscus lenses.
Material BK7, Fused Silica,Ge,Si, CaF2...
Diameter 1.5-350mm
Surface Figure λ/2
Diameter Tolerance +0.1, -0.1 mm
Thickness Tolerance ±0.2 mm
Centration <1 arc minutes
Clear Aperture >90%
Surface Quality 60-40 scratch and dig
Coating Specified by customers

Application:
Microscopic instruments
Optical metrological instruments
Optical instruments of surveying and mapping
Machine vision devices
Optical detection instruments
Optical test instruments
Fiber optic instruments
Laser Instruments
Electro-optic displays
Medical optical
Infrared thermography
Observation instrument measuring instrument and photography lens:PCX,DCX,PCV,DCV,Achromatic Lenses,rod lens,cylindrical lens
Optical Lenses are optical components designed to focus or diverge light. Optical Lenses, which may consist of a single or multiple elements, are used in a wide variety of applications from microscopy to laser processing. Many industries utilize Optical Lenses, including life sciences, imaging, industrial, or defense. As light passes through a lens, it is affected by the lens' profile or substrate. A Plano-Convex (PCX) or Double-Convex (DCX) lens causes light to focus to a point, while a Plano-Concave (PCV) or Double-Concave (DCV) lens causes the light traveling through the lens to diverge. Achromatic Lenses are ideal for applications requiring color correction, while Aspheric Lenses are designed to correct spherical aberration. Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) lenses are ideal for transmitting the Infrared (IR) spectrum, while Fused Silica is well suited for the Ultraviolet (UV).
A plano-convex lens is compose of a plane and convex surfaces, has a positive focal length. It is suitable for collecting and focusing light, and is a ideal optical element in the application of emitters, detectors, lasers, and fiber optics. Other Items
Factory information
Changchun Yutai Optics Co.,Ltd. is a manufacturer with ISO9001 certification. We are specialized in high-performance optical components include lens, mirrors, filters, windows and prisms which are specified by customers. YutaI's items are widely used in imaging, defense, medical, laser and industry market.
As a fast-growing supplier in optics, Yutai Optics has quickly established itself as a leader in optical components with advanced technology and quality control ability as Yutai aims to provide professional service and good quality items to meet customers' request. Yutai has already established long-term cooperative relation with many powerful companies all over the world.
Our Advantage
Yutai Optics has a professional sales team with excellent service. Sales team provide full service from inquiry,production,inspection,delivery and after sale guarantee. "Customer first" is sales teams goal. So Yutai always try the best to meet each customer's request.
Yutai Optics processes precision optical components with many experienced engineers and advanced machines which are the important elements for the high quality items.Our advanced production machines list:Ring polishing machine,Single axis machine,Two axis machine,Four axis machine,Centering edging machine,Mechanical milling machine, Spectrograph Grinding machine,Nanotech.250upl,Talysurfi120.
Yutai Optics has a double-check inspection for optical components.The quality control department test every component carefully and provide testing report for each order. Our testing machine includes ZYGO,Stereo interferometer, Horizontal interferometer.
Process for most optics
Material-cutting-rounding-milling-grinding-polishing-edging-cleaning-coating-gluing-edging-blacking-accembly-packing-shipping
Packaging & Shipping
1 Package Detail: A. Standard carbon and envelop with plastic foam.
B. Safety green carton.
C. Customized.

2 Delivery Detail: Within 30 days.(Also depand on the quantity) Payment:
