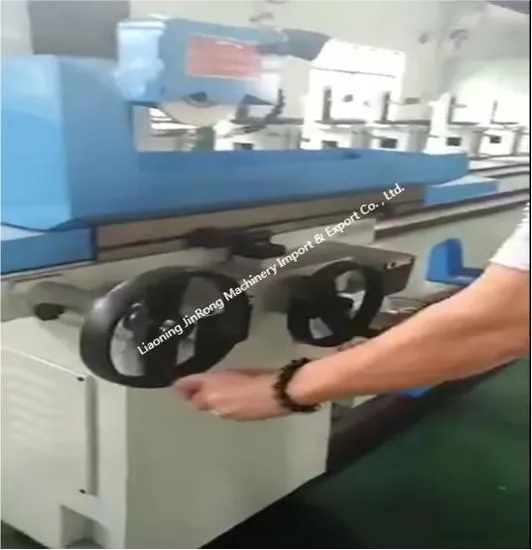

The M250 Surface Grinding Machine

Product Description

Liaoning Jinrong Machinery Import and Export Co., Ltd. is a company with its own import and export rights, and is a large group company integrating industry and trade. The registered capital of the company is RMB 180 million. The company includes metallurgical equipment manufacturing company, electric furnace equipment manufacturing company, electrical equipment manufacturing branch, mechanical processing branch and metallurgical design and research Institute.
Our company can undertake all kinds of metallurgical equipment design, manufacturing, installation, commissioning, trial production turnkey project. Our company can provide mining machinery and equipment, ironmaking blast furnace, sintering machine, coke oven, converter, electric arc furnace, ladle refining furnace, continuous casting equipment, steel rolling furnace, steel rolling production line, steel structure plant and crane and other metallurgical equipment and metallurgical machinery. Various other types of mechanical equipment are also available.
Our company is the direct agent of Anshan Steel, Bensteel, Fusteel and other large steel mills, the variety of steel is complete: pipe, plate, profile, wire and so on are in stock. If the special specifications, materials and other requirements, we can organize the order to purchase, schedule production and rolling, to ensure supply.
Our company has a history of 30 years, and now has established friendly contacts with more than 120 countries and regions and carried out various aspects of cooperation. We welcome customers from all over the world to visit our company.
Location :1-51-901-3041, Floor 9, Jiangsu Building, Qianyuan Emerging Market, Tiexi District, Anshan City, Liaoning Province

Total Number of Staffs		585
Total Number of Managers		40
Total Number of Technical Staffs		160
Total Number of QC Staffs		15
Total Number of workers		310
Total Number of other staffs		60
Contact person	Mr .Su	Position	president

Specifications						Units	M250
workbench	(×) Worktable size (L * W)					mm	500×250
	(×) Max. travel of table					mm	530×270
	T(×) Table T slot (slot number x slot width)					mm	1×14
Grinding head	(WA46K5V)(××) The grinding wheel size (o. d * w * i. d.)					mm	φ200×20×Φ31.75
	Distance spindle center line to working table					mm	470
	Grinding wheel speed				50HZ	r/min	2850
					60HZ	r/min	3360
The amount of feed	()Table longitudinal (left and right) speed					m/min	3-20
	()Transverse (front and rear) feed handwheel feed			() Continuous (stepless)		mm/min	400
				() Intermittent (stepless)		mm/min	0-5
				Handwheel per turn		mm	5.0
				Handwheel per lattice		mm	0.02
	() The vertical (up and down) feed handwheel feed			Handwheel per turn		mm	2.0
				Handwheel per lattice		mm	0.01
Motor power		Spindle motor				kw	1.5
		Cooling motor				W	40
working accuracy	The process surface of the base level of the parallel degree					mm	300:0.005
	Surface roughness					μm	Ra0.32
Machine weight			Net weight			kg	880
			Gross weight			kg	980
(××) External size (L * w * h)						mm	1680x1140x1760
(××) Packing size (L * w * h)						mm	1400x1160x1960
