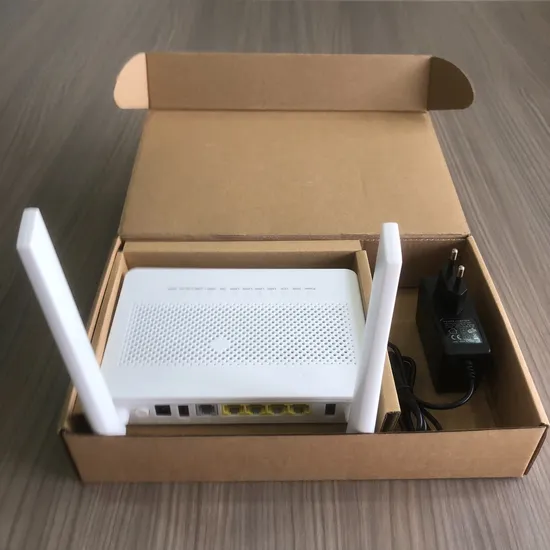

Eg8145V5 Ont Echolife Dual Band WiFi 2.4G/5g 4ge Gpon Xpon ONU HS8145V5 Ont

Product Description

Product Description 2.4/5G HS8546V5 GPON ONT: 2.4/5G WIFI GPON ONT HS8546V5/EG8145V5
GPON 4*GE (or 1*GE+3*FE)+1*POTS+2*USB, with 2.4G/5G WiFi
5dBi ENG firmware, EU power
Connector type: SC/UPC
Product Parameters Device Parameters

Dimensions(DxWxH)	(225x126x30)mm	System power supply	11V-14VDC,1.5A
Weight	<0.65kg	Static power consumption	8W
Operating temperature	0ºC to 40ºC	Maximum power consumption	18.5W
Operating humidity	5%RH to 95% RH(non-condensing)	Ports	4*GE RJ45+1RJ11+2.4G/5G WIFI+2USB 1*GPON
Power adapter input	100-240V AC,50-60HZ	Idicators	POWER/PON/LAN/LOS/TEL/USB/WLAN/WPS

Interface Parameters

GPON Port	·Ethernet port-based vlan tags and tag removal ·Class B+ ·Receiver sensitivity:-27dBm ·Wavelengths:US 1310nm,DS 1490nm ·Wavelength blocking filter(WBF) ·Flexible mapping between GEM Port and TCONT ·GPON:consistent with the SN or password authentication defined in G.984.3 ·Bi-directional FEC ·SR-DBA and NSR-DBA
Ethernet Port	·Ethernet port-based vlan tags and tag removal ·1:1VLAN,N:1 VLAN,or VLAN transparent transmission ·QinQ VLAN ·Limit on the number of learned MAC address ·MAC address learning ·Transparent transmission of IPv6 packets at layer 2
POTS Port	·Maximum REN: 4 ·G.711A/μ, G.729a/b, and G.722 encoding/decoding ·T.30/T.38/G.711 fax mode ·DTMF ·Emergency calls (with the SIP protocol)
USB Port	·USB2.0 · FTP-based network storage
WLAN	IEEE 802.11 b/g/n/ac ·2.4G:2 x 2 MIMO ·5GHz: 2 x 3 MIMO 802.11a/n/ac ·Antenna gain: 2 dBi ·WMM ·Multiple SSIDs ·WPS
