Product Description

Product Description

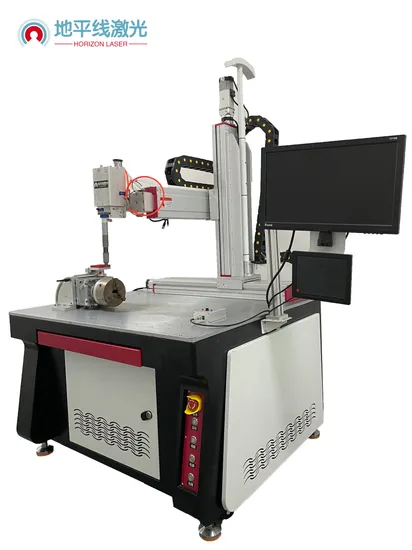

5-axis laser welding machine controls the movement of the welding head through multiple motion axes, realizes multi-track welding of complex products, and is suitable for application scenarios with high welding precision and batch product processing. It is widely used in lithium battery industry, 3C industry, kitchen and bathroom industry.
Detailed Photos
Appication

Product Parameters

Technical Parameters

Laser	CW fiber laser, QCW laser
Laser power	1000-6000W
Motion axis	4- axis ( 3- axis, 5- axis, 6- axis optional), rotation axis
Welding head	Conventional welding head, swing welding head (weld seam 0.2 ~ 5 mm )
Welding mode	Continuous welding (sealed welding, stitch welding, tailor welding, fillet welding), spot welding
Processing range	Length, width and height: 200-900mm (larger size can be customized)
Drive method	Servo motor (linear motor optional)
Repeatability	± 0.03mm
Other optional configuration	Double station, CCD positioning, conveyor belt loading and unloading machine, wire feeding mechanism

Features Servo motor is matched with reducer to realize high-speed and large-torque movement;
Simultaneous multi-axis linkage to achieve a processing track similar to that of a manipulator;
The matching material tray can realize large-scale and batch one-time welding; the open IO handshake interface can be processed with automated production lines.
welding is 4 times faster than argon arc weldingl;
One-time welding forming, smooth welding bead, no need for grinding;
Basically no consumables, standardized use, the protective lens can be used for several weeks;
You can get started in 4 hours and become skilled as an professional welder in one day;
Comes with air pressure detection alarm to avoid damage to the welding torch;
Our Advantages

Certifications
After Sales Service
1. 7*24 hour
2. Response time<12 hours
3.Online support
4.Product replacement
5. Customer field service
6. Backup products during repairing for long time cooperators
* International warranty ONLY valid if products are purchased directly from Horizon Laser or authorized local distributors/agents.
FAQ
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
Do you have after sales support?
A: Yes,we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
I am not sure if this machine suitable for my work? A: Don't worry,just tell me your welding materia and welding thickness,then i will recommend you the most suitable machine for you.
