Monthly Deals Customized Laser Engraving Machine for Metal Stainless Steel Brass Copper

Product Description

15 years experience! Provide customized automatic laser marking engraving cutting cleaning welding solutions!

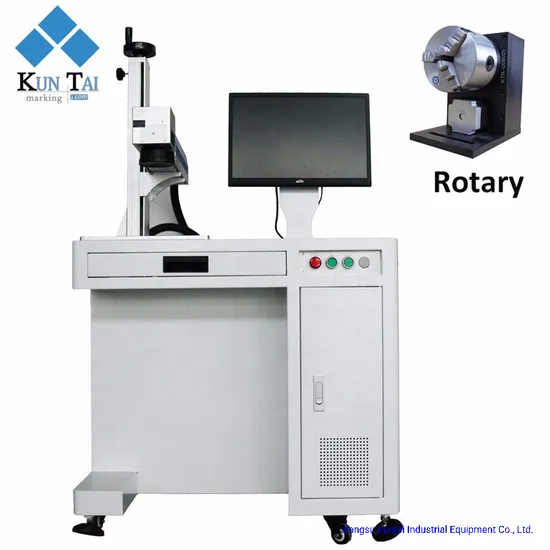

20W 30W 50W 100W 120W Fiber laser marking engraving machine
KT-series high quality laser marking machine is a new generation laser marking system made with newest laser technique in the world,
It design with fiber laser maker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function,
The fiber laser making machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products images marking etc.
OUR PRODUCT


MAIN PARAMETERS

Item NO.	KT-LF (floor type)
Laser type	FIBER laser
Laser output	20W (option:30W 50W 100W 120W)
Rotary chuck	Dia100mm(option:Dia125mm,Dia160mm)
Max marking speed	9000mm/s
Laser wavelength	1064nm
Beam quality(m2)	<1.8 square metres
Laser frequency	20kHz~200kHz
Standard marking area	100mm×100mm
Optional marking area	70mm×70mm/150mm×150mm/175X175mm/200X200mm/250x250mm/300x300mm
Marking depth	0.01-0.2mm,according to different materials
Whole machine power	<950W
Min line width	0.01mm
repeatabilityprecision	±0.001mm
Marking system	Ezcad software
Material	Stainless steel,carbon steel,Aluminum,Brass,Copper,Iron etc metals,and ABS,PVC,PE etc
Windows system	WinXP,Win7,Win8,Win10,32bit and 64bit
Power supply	AC 220V+-10%/50-60HZ
Out package size	87X68X115CM
Cooling system	Air cooling

ADVANTAGES


1) USB interface connection: will work with a Laptop.

2) Small and compact: the dimension of fiber marker is very small, convenient to be taken away.

3) High Precision, bring you the fantastic and satisfied marking effect.

4) Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.

5) No Consumables: One Fiber marker can work for more than 10 years without any consumables.

6) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.

7) The fiber laser beam comes out from the IPG fiber device directly, no need to adjust the laser optical path.

8) With Motorized Up/Down Focus and scale plate, capable to make location precisely, it is convenient and swift.

APPLICATION / LASER SAMPLES

Applicable material:
Metals and a variety of non-metallic materials, such as
Hard alloys, oxides, plating, coating, ABS, epoxy resin, ink, engineering plastics and so on. Especially the area which need high request of Deep, smooth, fine degrees such as watches and clocks, the mold industry, bitmap marking and so on
MAIN CONFIGURATION

PACKAGING/SHIPPING

Model:KT-LF (floor type)
Each unit per plywood case
Gross weight: 120KGS
Delivery: Winth 10 days after payment received (for standard machine)
Outer dimension:87X68X115CM
Shipping: by sea/by air/by express posting

WARRANTY/SERVICE

· 1.We supply the software which can assist the marking machine

· 2.Free design of fixtures as customers required and technical support.

· 3.We guarantee delivery time within 10 days

· 4.We can customize the marking machine as your request.Provide special marking solutions for you.

· 5.TWO years for laser source,one year for other spare parts
OUR FACTORY & CUSTOMER VISIT

Jiangsu Kuntai Industrial Equipment Co.,Ltd(Wuxi Kuntai Automation Co., Ltd) has more than 15 years manufacturing experience. Our products were all passed CE FDA ISO, and were exported to Europe, North America, LatinAmerica, Middle East, and South-east Asia.We have a Design group, specilized in constantly improve the existing products and design new Laser products.
