High Quality Xh7126 Taiwan 4 Axis CNC Small Machining Center Vertical CNC Milling Machine
| US$15,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XH7126
Type
Meter Milling Machine
Object
Metal
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Transport Package
Plywood Case
Specification
1200x1500x2100mm
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595100
Production Capacity
50 PCS/Month
Product Description
PRODUCT MAIN TECHNICAL SPECIFICATIONS:
KND-1000MI
X/Y/Z AXES SIEMENS SERVO MOTOR&DRIVER
SERVO SPINDLE MOTOR&DRIVER
10T FUNNEL TYPE TOOL MAGAZINE
FULL CLOSED COVER
OPTIONAL ACCESSORIES

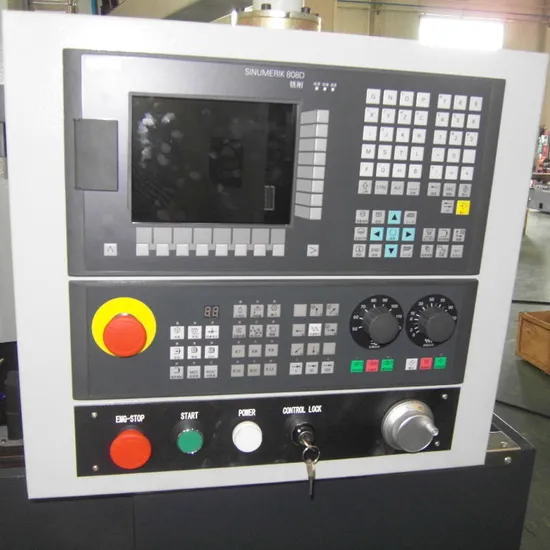

SIEMENS 808D BASIC/828D CNC CONTROLLER
16T DISC TYPE TOOL MAGAZINE
WITHOUT TOOL MAGAZINE(CNC MILLING)
BOX GUIDEWAY OR LINEAR GUIDEWAY
4TH AXES(NC DIVIDING HEAD)
| SPECIFICATION | XH7126 | XK7126 |
| The X axis stroke | 450mm | 500mm |
| Y trip | 320mm | 300mm |
| The Z axis stroke | 450mm | 400mm |
| Tool storage capacity | umbrella type magazine tool -12T | -- |
| The spindle nose to mesa | 90-470mm | 90-520mm |
| Spindle center to post | 360mm | 360mm |
| Table size | 800 X 260mm | 800 X 260mm |
| T slot (size X number X spacing) | 14 X 3 X 80mm | 14 X 3 X 80mm |
| The workbench maximum load | 400kg | 400kg |
| The spindle taper | BT40 | BT40 |
| The standard spindle type | 6000rmp | 6000rmp |
| Spindle power | 3.7kw | 3.7kw |
| Cutting speed | 1-12000mm/min | 1-6000mm/min |
| Fast speed | X/Y/Z:15m/min | X/Y/Z:10m/min |
| Positioning accuracy | ±0.01/300mm | ±0.01/300mm |
| Machine tool gross weight | 2400kg | 1800kg |
