5kw Noise Free High Efficiency Wind Mill Wind Turbine Vertical Power Vertical Wind Generator Turbine (200W-5KW)
| US$1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
wkv-5kW
Rotating Shaft
Vertical
Stress Way of Blade
Resistance
Power
10-100kW
Certification
CE, ISO, RoHS
Rated Power
5000W
Blades Material
Aluminum Alloy
Generator Type
AC, 3 Phases
Controller Braking System
3-Phase Short Circuit by NFB Brake
Ambient Temperature
-30~50 °c
Size(Height / Diameter)
3.53/3.9
Model
Wkv-5000
Start-up Wind Speed
1.5m/S
Rated Wind Speed
13m/S
Survival Wind Speed
60m/S
Transport Package
Plywood
Specification
CE RoHS
Trademark
windwing
Origin
Hefei
HS Code
85030030
Production Capacity
100 PCS/Month
Product Description
Professional Manufacture for Vertical Axis Wind Turbine1. High Quality
2. Competitive Price
3. OEM
4. Fast Delivery Time(We suggest only buy Wind Turbine+Generator+Controller from us)
Such as Inverter, battery, tower, you can buy it in your local.

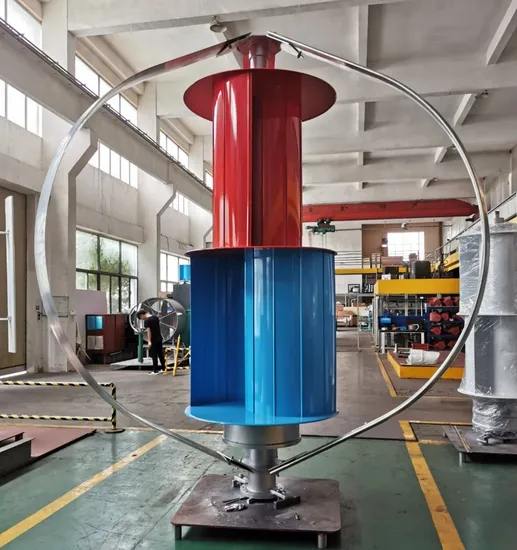

Maglev Vertical Axis Wind turbine 5KW
Application:
Suitable for any Application; Urban to Rural, Residential to Commercial, Industrial to Institutional
Vertical wind turbine generator(VAWTs)are a type of wind turbine where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. They are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing
designers to separate them by ten times their width.
Technical Data
| PARAMETER | VERTICAL WIND TURBINE MODEL NUMBER |
| WKV-5000 | |
| Rated Power | 5KW |
| Size(Height / Diameter) | 3.53/3.9(M) |
| Blades Material | aluminum alloy |
| Start-up Wind Speed | 1.5m/s |
| Minimum Power Generation Wind Speed | 2.5m/s |
| Cut-in wind speed | 4m/s |
| Rated Wind Speed | 13m/s |
| Cut out Wind Speed | 15m/s |
| Survival Wind Speed | 60m/s |
| Generator Type | AC, 3 phases |
| Controller Output Voltage | 48/96V |
| Controller Braking System | 3-Phase short circuit by NFB brake |
| Ambient Temperature | .-30~50 °C |
| Advantages of VAWT: | Nearly Quiet More Safety Captures Wind From Any Direction Birds Friendly Longer Working Life Less Maintenance Less Requirements on Foundation Lower Supporting Tower |
| Features from Other VAWT: | Pitch Control to Govern Speed Automatic Mechanical Brake |
| Specifications | 1. High efficiency, security, stablity 2. Low weight, low start-up wind speed. 3. Long service life |
| Characteristic: | 1. Utilize a new aerofoil vertical axis wind wheel and magnetic suspention structure 2. The start-up wind speed is very low 3. The wind energy coefficient is very high 4. The anti-wind capability is high 5. The weight of generator is very light 6. Operation is stable 7. Have no noise 8. With careful anti-corrosion treatment and good sealing 9. Maintenace free 10. Long service life |
| Useage | · Household, Garden, farm eolic vertical wind turbine generator, Off grid and on grid power system · Telecom sites. · Rural electrification programs. Island, sentry, island, sight lighting · Make wind -solar hybrid power system |
| Our Service | 1. Reply inquiry in 24 hours. 2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP. 3. Answer your question detailed 4. Solved the problem with you during using our products |
