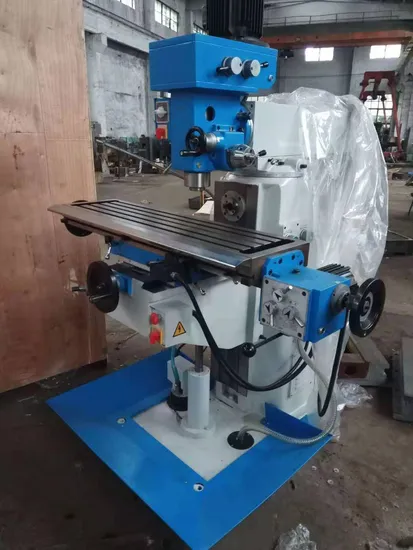

Knee Type Milling Machine Universal Drilling Milling Machine
| US$2,950.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX6350C
Type
Worktable Milling Machine
Object
Hardware
Structure
Lifts
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
W/Case
Specification
1250X360
Trademark
Allway
Origin
China
HS Code
84592900
Production Capacity
1000PCS/Year
Product Description
UNIVERSAL DRILLING MILLING MACHINE:Gear driven; X axis auto feedThis model pass CE standard.
ZX 6350C is a kind of economic-type drilling and milling machine, light and flexible, is used for mechanical maintenance, non-batch parts processing
and components manufacturing.
The vertical head swivels to both sides (+-) 90SPECIFICATIONS:
| MODEL | UNIT | ZX6350C |
| Spindle taper | M.T.4/ISO40/ISO30/R8 | |
| Distance vertical spindle to table | mm | 100-460 |
| Distance horizontal spindle to table | mm | 0-360 |
| Distance spindle to column | mm | 200-500 |
| Spindle seeds range | r/min | (8 steps)115-1750(vertical); (12 steps)40-1300(horizontal) |
| Automatic Feed Series sleeve | mm | 120(vertical) |
| Table size | mm | 1120×280 |
| Table travel | mm | 600/250/360 |
| Distance horizontal spindle to arm | mm | 175 |
| Table feeds range(x/y) | mm/min | 12-370(8 steps)(max.540) |
| T of table (no./width/distance) | mm | 3/14/63 |
| Main motor | kw | 0.85/1.5(vertical);2.2(horizontal) |
| Motor of table power feed | w | 370 |
| Coolant pump motor | w | 40 |
| N.W/G.W. | kg | 1250/1450 |
| Overall dimension | mm | 1660×1340×2130 |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| 3-axis position indicator, 2 milling arbor (22, 27mm) ColletS set, drill chuck, mill chuck, Reduction sleeve, Work light, coolant. | DRO on X, Y, Z--AXIS Clamping kit Universal dividing head Rotary work table. |
