Computer Controled Fully Automatic Vicat Apparatus for Cement

Product Description

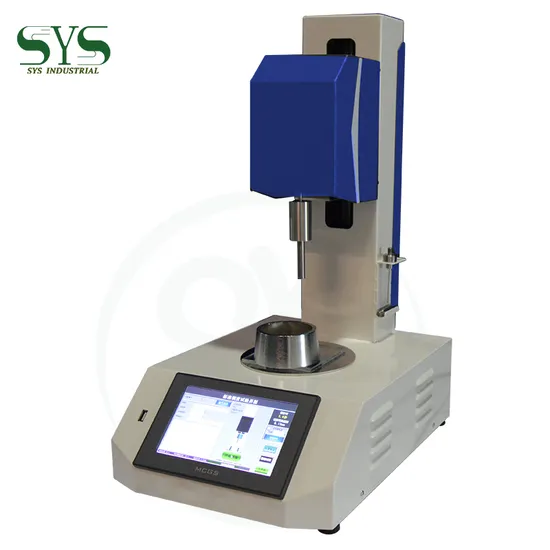

Automatic Vicat Apparatus
Model: SYS-VA10 Application and scope of application Vicat apparatus, also called cement consistency setting time tester. It is a testing instrument for cement and concrete industries. It is mainly used to test the standard consistency water requirement and setting time of cement paste.
This instrument is mainly suitable for Portland cement, ordinary Portland cement, slag Portland cement, fly ash Portland cement, pozzolanic Portland cement, composite Portland cement and other varieties designated cement.
The cement standard consistency net slurry has a certain resistance to the sinking of the standard test rod. By testing the penetration of cement paste with different water content, the amount of water needed to be added to the cement standard consistency paste is determined. Main structure and characteristics

Number	Parameters	Technical indicators
1	Time control	Display resolution: 0.1s control precision: ≤±0.1s
2	Displacement	Adapt high precision LVDT displacement sensor, split structure, without friction when needle dropping range 0~50mm, display precision: 0.01s Relative displacement accuracy: ≤±0.1mm
3	Storage data	200 groups
4	Sliding component	300g±1g(include needle and rod)
5	Data interface	RS485
6	Dimension	390x310x575mm
7	Voltage	220±10%VAC/50HZ
8	Power	40w
9	Net weight	12kg

Packing list and materials for test (1)Packing list

NO	Name	Unit	Quantity	Remark
1	Vicat host	set	1
2	Slit component	pcs	1	Sensor rod, cylinder
3	Mould	Pcs	1	Height 40mm
4	Rod	Pcs	1	Effective length 50mm Diameter: 10mm
5	Needle	pcs	2	Effective length 50mm Diameter: 1.13mm
6	Glass	pcs	2	100mmx100mm Thick: 4~5mm
7	scraper	pcs	1
8	Power cable	pcs	1
9	485 Communication data line	pcs	1
