Multi-Cylinder and Multi-Dryer Carton Paper Making Machine

Product Description

2880mm Multi-cylinder and Multi-Can Paper Making Line
For capacity 50 tons/day
I. Technical parameter
1.Raw materials: waste paper
2.Output paper: carton paper,liner paper
3. Net paper width:2880mm
4.Output paper weight:120-150 gm2
5.Capacity: 50 TD
6.Working speed: 110-120mmin
7.Designing speed:160m/min
8.Rail gauge: 3800mm
9.Drive way: Alternating current frequency converter speed control, sectional drive.
II. The main structure and Equipments
1.Cylinder part: 1500mmx 3350mm stainless-steel plate cylinder, 4pcs;Φ450mm×3350mm couch roll,5 pcs,including one reverse roll; rubber hardness HS-38ºC±2,pneumatic loaded device,multitube for pulp,stainless
2.Squeeze part: Φ4000mm×3450mm squeeze roll,2 pcs, rubber hardness HS-90ºC±2, pneumatic loaded device
3.Pre-press part: Φ6500mm×3350mm top roll,one pcs of natural marble stone roll; Φ6000mm×3350mm bottom roll, one pcs of rubber roll; rubber hardness HS-95ºC±2, pneumatic loaded device
4.Press part :Φ8500mm×3350mm, 2 pcs of natural marble stone rolls ; Φ8000mm×3350mm rubber roll,2pcs; rubber hardness HS-97ºC±2, pneumatic loaded device
5.Dryer part: Φ1500mm×3350mm alloy dryer can 12 pcs, 12 sets of blades
6.Calendaring part: Φ7500mm×3350mm calendaring roll,2 pcs, hardness 72ºC±2, solid
7.Reeling part: one set of 2880 horizontal pneumatic reeler, one set of winding sweat cylinder(Φ1100mm×3100mm)

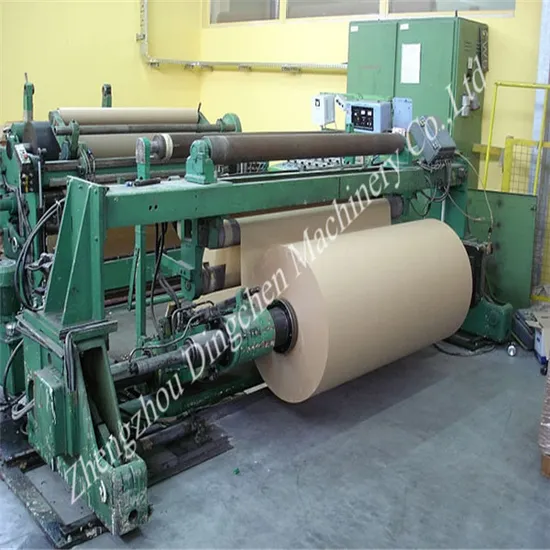

8.Rewinding part: one set of 2880 frame-type rewinding machine
Corrugated paper production flowchart
