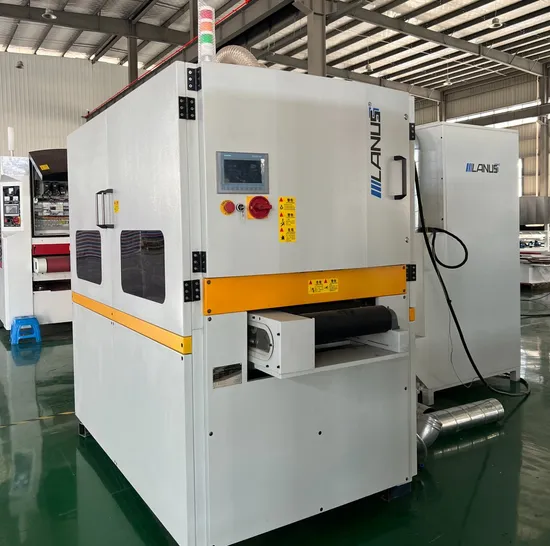

Efficient Automatic Deburring Machine for Metal Surface of Automotive Parts with Lsg1000

Product Description

Dry grinding metal sander
1. Application scope of equipment: suitable for flat plate parts, carbon steel plate, stainless steel plate, aluminum plate, copper plate, titanium alloy, all kinds of non-ferrous metals, rubber and plastic materials, marble, graphite, etc.
2. Equipment function: suitable for all kinds of flat plate parts surface drawing, polishing, scratch removal, removal of longitudinal burr, oxidation skin, hair, fixed thickness and other processing.
3. Equipment combination: single or multiple combination structure of sand belt + polishing wheel
4. Width of equipment: 350mm,650mm,800mm,1050mm,1350mm ,1600mm,1900mm,2200mm
5. Processing thickness ofequipment: 1-80 mm
6. Belt linear speed :18 m/s(variable frequency adjustable)
7. Polishing wheel line speed :20 m/s(variable frequency adjustable)
8. Feeding speed :2-11 m/min( variable frequency adjustable)
9. Optional feeding mode:
(1) Conveyor belt + rubber roller clip feeding (for ordinary workpieces. Workpiece length ≥280 mm)
(2) Strong permanent magnet adsorption conveying material for carbon steel workpieces. Workpiece size ≥10 mm×10 mm)
(3) Vacuum negative pressure adsorption conveying feeding (for stainless steel plate, copper plate, aluminum plate, etc.) is not magnetically adsorbed. Workpiece size ≥50 mm×50 mm)
(4) The rubber roller + the rubber roller are clamped to feed the material. Workpiece length ≥280 mm)
10. Four-column synchronous lifting, lifting height digital setting and reading, unit: mm
11. Equipped with wet vacuum cleaner or industrial pulse vacuum cleaner to treat grinding dust to achieve environmental protection production.
