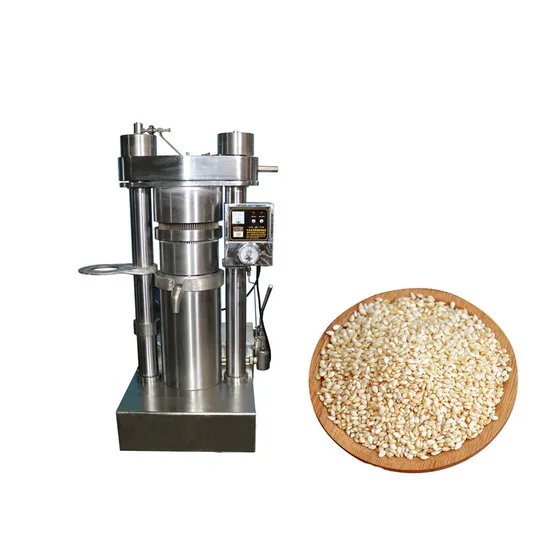

Satisfying Cooking Oil Processing Equipment Hydraulic Sesame Oil Pressing Machine

Product Description

Commercial oil press machine cooking oil making machine sesame oil expeller Working principle
The hydraulic box provides power, and then pushes the solid piston in the press chamber to extrude the material, which is blocked by the top roof, so the oil is extruded, when the pressure reaches 60Mpa, the pressure will automatically fall down, the piston will also fall, when the pressure drops to about 50Mpa, the piston will go up again, press the material and extrude the oil repeatedly.
Operating procedures
Hydraulic oil press uses traditional physical pressing method and modern oil press technology. The whole operation process is very convenient and simple. Open the top roof, put a cotton pad in the bottom of the kettle, then put raw material into the kettle and put a cotton pad again, then close the top roof,finally oil is pressed and filtered out of the oil line.
Our Advantages
1.Good material of the machine to guarantee the product life and the safety of users
2.Our machine applies four-step safety protection system to assure the product life of machine and safety of users.
3.Automatic temperature control system:solve the low oil yield problem in winter
4.The oil line is precise and thin, only 0.36 mm, it can filter oil residues and improve the oil output rate.
5.Hydraulic system is the core part of the machine, its working pressure can reach 60 Mpa, it provides enough power for the machine to improve the oil productivity.
Product Parameters

Model	6YY-185	6YY-230A	6YY-230B	6YY-250	6YY-270	6YY-300	6YY-335	6YY-355
Size(m)	0.97*0.82*1.36	1.14*0.9*1.84	1.1*0.97*1.75	1.18*1.03*1.82	1.17*1.11*1.9	1.2*1.11*1.9	1.26*1.2*1.94	1.35*1.3*1.9
Weight(kg)	610	984	1050	1170	1330	1700	1850	2450
Voltage(V)	220/380	220/380	220/380	220/380	220/380	220/380	220/380	220/380
Power(KW)	2.2/1.1	2.2/1.1	2.2/1.1	2.2/1.1	4.0/1.1	4.0/2.2	4.0/2.2	5.0/3.0
Diameter of oil cake(mm)	185	230	230	250	270	300	335	355
Capacity(kg/batch)	4	8.5	9.5	11	13.5	16	20	23

Raw materials
Our oil press suitable for sesame, peanut, sunflower seed, walnut, almond, tea seed, avocado, coconut, cotton seed, flaxseed,rapeseed, larvea, etc.
Packaging & Shipping
We use standard wooden case to pack the machine, which can reduce the wear and tear on the machine, thus protecting the machine. If the customer has their own needs, we can customize the packaging according to the customer's requirements. And we send machine by sea to cusotmers' local sea port.
After Sales Service
If customers cannot install or operate the machine after receiving the product, they can contact our professional technicians at any time, and we can also provide detailed video teaching.
And we will provide one year warranty for free to help you solve problems and supply maintenance.
FAQ
Q1:What materials your machine can press?
A1: Our hydraulic oil press machine can press kinds of materials, such as soybean, sesame, cottonseed, walnut, camellia,peanut and so on.We can also provide testing service for you.
Q2:How long is your guarantee?
A2:One year guarantee.
Q3: Why your product are more expensive than others?
A3: Our machine have high quality, 60Mpa pressure hydraulic system, automatic temperature controller, quality steel. Those are not available in other products. We not only sell machine but also sell quality and service.
Q4: What should I do, if I do not know how to use the machine?
A4: We have operation video and paper manual for your study before putting into use.
Q5: Can I test the machine in factory for free?
A5: Of course. We are the manufacturer and welcome your visit our factory. We can also test and send videos to you according to your requirements.
