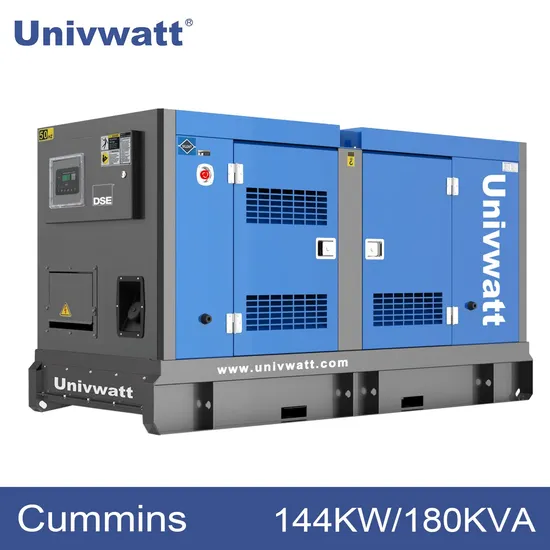

Common Power Supply Cummins Silent Diesel Generator Set 144kw 180kVA Outdoor

Common Power Supply Cummins Silent Diesel Generator Set 144kw 180kVA Outdoor

US$10,300.00-11,350.00 1 Piece (MOQ)

Basic Info.

Model NO.
UG180DC
Type
Self-Starting Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
Speed
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Low Noise Automation Type
Excitation Mode
AC Rotating Exciter
Frequency
50Hz-60Hz
Tank
8-Hour Spare Fuel Tank
Phase
3 Phase
Voltage
400/230V
Power
144kw/180kVA
Rpm
1500/1800
Transport Package
Ocean Shipping
Specification
3370*1125*1600
Trademark
univwatt
Origin
China
HS Code
8502120000
Production Capacity
500 Units

Product Description

Company Profile
Founded in 1919, Cummins is a global power technology pioneer that designs, manufactures and distributes a diverse range of power solutions and provides customers with a global network of more than 10,600 certified dealerships and more than 500 distribution and service locations that support customers in more than 190 countries and territories.
Detailed Photos

Product Parameters
Genset Model
50Hz		 Genset Prime Genset Standby Engine Model Dimension
1500rpm 1500rpm Open Silent
Kwe KVA Kwe KVA Model Prime Power Length*Width*Height Length*Width*Height
UG20DC 17 21 19 23 4B3.9-G11 20/22 1850*800*1260 2220*900*1150
UG28DC 22 28 24 30 4B3.9-G1 24/27 1850*800*1260 2220*900*1150
UG28DC 22 28 24 30 4B3.9-G2 24/27 1850*800*1260 2220*900*1150
UG30DC 25 31 28 35 4B3.9-G12 27/30 1850*800*1260 2220*900*1150
UG40DC 32 40 36 45 4BT3.9-G1 36/40 1850*800*1260 2270*950*1200
UG40DC 32 40 36 45 4BT3.9-G2 36/40 1850*800*1260 2270*950*1200
UG56DC 45 56 50 62 4BTA3.9-G2 50/55 1850*800*1290 2470*1000*1250
UG65DC 52 65 58 73 4BTA3.9-G2 58/64 1850*800*1290 2470*1000*1250
UG80DC 64 80 72 90 4BTA3.9-G11 70/80 1900*800*1300 2470*1000*1250
UG95DC 76 95 84 105 4BTA3.9-G13 87/97 1900*800*1300 2770*1050*1400
UG100DC 80 100 88 110 4BTAA3.9-G3 96/106 1900*800*1300 2770*1050*1400
UG95DC 76 95 84 105 6BT5.9-G1 86/92 2200*880*1360 2970*1050*1250
UG95DC 76 95 84 105 6BT5.9-G2 86/92 2200*880*1360 2970*1050*1250
UG105DC 84 105 92 115 6BT5.9-G2 96/106 2200*880*1360 2970*1050*1250
UG115DC 92 115 100 125 6BTA5.9-G2 106/116 2200*880*1360 2970*1050*1250
UG135DC 108 135 120 150 6BTAA5.9-G2 120/130 2200*880*1360 3070*1075*1400
UG150DC 120 150 132 165 6BTAA5.9-G12 140/155 2400*950*1510 3370*1125*1600
UG180DC 144 180 160 200 6CTA8.3-G1 163/180 2400*950*1560 3370*1125*1600
UG180DC 144 180 160 200 6CTA8.3-G2 163/180 2400*950*1560 3370*1125*1600
UG200DC 160 200 176 220 6CTAA8.3-G2 183/203 2650*1000*1800 3770*1125*1800
UG225DC 180 225 211 264 6CTAA8.3-G9 --/231 2650*1000*1800 3770*1125*1800
UG250DC 200 250 220 275 6LTAA8.9-G2 220/240 2650*1000*1800 3770*1125*1800
UG250DC 200 250 220 275 6LTAA8.9-G3 230/250 2650*1000*1800 3770*1125*1800
UG275DC 220 275 240 300 6LTAA9.5-G3 250/280 2850*1140*1800 3970*1275*1900
UG320DC 256 320 280 350 6LTAA9.5-G1 290/320 2850*1140*1800 3970*1275*1900
UG388DC 310 388 340 425 6ZTAA13-G3 340/380 3500*1300*2050 4570*1520*2300
UG440DC 350 438 380 475 6ZTAA13-G2 390/415 3500*1300*2050 4570*1520*2300
UG440DC 350 438 380 475 6ZTAA13-G4 400/415 3500*1300*2050 4570*1520*2300
UG450DC-III 360 450 400 500 QSZ13-G2 400/440 3500*1300*2050 4570*1520*2300
UG475DC-III 380 475 400 500 QSZ13-G3 450/470 3500*1300*2050 4570*1520*2300
UG450DC-III 360 450 400 500 QSZ13-G5 411/470 3500*1300*2050 4570*1520*2300
UG500DC-III 400 500 440 550 QSZ13-G10 463/509 3500*1300*2050 4570*1520*2300
UG375DC-III 300 375 336 420 QSZ13-G6 328/374 3500*1300*2050 4570*1520*2300
UG413DC-III 330 413 380 475 QSZ13-G7 367/419 3500*1300*2050 4570*1520*2300
UG60DC-III 48 60 53 66 QSB3.9-G2 63/70 1850*800*1290 2470*1000*1250
UG80DC-III 64 80 72 90 QSB3.9-G3 79/88 1850*800*1290 2770*1050*1400
UG100DC-III 80 100 88 110 QSB5.9-G2 96/106 2200*880*1360 3370*1125*1600
UG125DC-III 100 125 110 138 QSB5.9-G3 120/132 2400*950*1510 3370*1125*1600
UG150DC-III 120 150 132 165 QSB6.7-G3 151/166 2400*950*1510 3770*1125*1800
UG180DC-III 144 180 160 200 QSB6.7-G4 168/185 2400*1100*1510 3770*1125*1800
UG200DC-III 160 200 176 220 QSL8.9-G2 206/226 2650*1100*1800 3970*1275*1900
UG225DC-III 180 225 200 250 QSL8.9-G3 220/244 2650*1100*1800 3970*1275*1900
UG250DC-III 200 250 220 275 QSL8.9-G4 235/258 2650*1100*1800 3970*1275*1900
