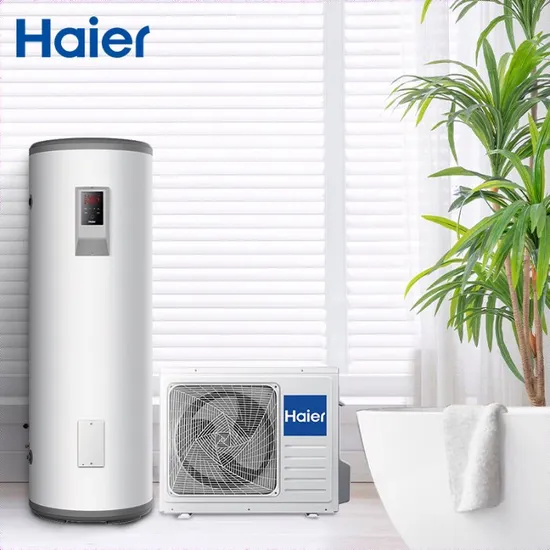

Europe Smart WiFi High Cop Split Domestic Hot Water 300L Enamel Tank R32 Refrigerant DC Inverter Electric Air Source Air to Water Heat Pump Hot Water Heater

Product Description

Haier R134A Commercial/Domestic/Residential Heating System Electric Full Inverter All in One Monoblock EVI DC Air to Source Air to Hot Water Heater Heat PumpProduct Parameters

Model(system)	HP200S1	HP300S1
Model(tank unit)	TS200HE-S1	TS300HE-S1
Model(external unit)	UE1.0-S1	UE1.5-S1
Tank volume(L)	195	293
Rated voltage/frequency(V/Hz)	230V/50Hz	230V/50Hz
Tank rated pressure(bar)	8.5	8.5
Extra exchanger design/area	No	No
Corrosion protection	Magnesium anode	Magnesium anode
Water proof grade	IPX4	IPX4
Assembled System
Electric backup power(W)	2150	2150
Average input-heat pump only(W)	665	850
Maximum input-heat pump only(W)	1000	1350
Maximum power input(W)	3150	3500
Default temperature setting(°C)	55	55
Temperature setting range with heater(°C)	35-75	35-75
Temperature setting range heat pump only(°C)	35-65	35-65
Refrigerant type/Weight (kg)	R134A/1.3	R134A/1.5
Ozone Depletion Potential(ODP)	0	0
Global Warming Potential (GWP)	1430	1430
Noise power dB(A)	64	64
Working temperature-heat pump only(°C)	-7-45°C	-7-45°C
Working temperature-system(°C)	-7-45°C	-7-45°C
Performance
Type of extraction	Exterior	Exterior
COP@7°C(EN16147)	3.09	3.2
COP@14°C(EN16147)	3.54	3.8
Heating up time (h)(@7°C)	4h03	4h45
Heating up time (h)(@14°C)	3h32	3h49
Tapping cycle (EN16147)	L	XL
Standby power input/ Pes(W)(@7°C)	28	29
Maximum volume of usable hot water(L)V40(EN16147)	245.1	382.6
Water heating energy efficiency class (ERP)	A+	A+
Dmensions and connections
Water outlet connection	G3/4"M	G3/4"M
Water intlet & Drain connection	G3/4"M	G3/4"M
Safety valve connection	G3/4"M	G3/4"M
Product Dimensions (D*W*H mm)(tank unit/external unit)	544*512*1765/899*352*681	632*600*1795/899*352*681
Packing Dimensions (D*W*H mm)(tank unit/external unit)	676*636*1927/960*425*735	737*696*1958/960*425*735
Gross weight(kg)	89/44	112/48
Net weight(kg)	77/41	98/44
Load qty.40HQ	60	51
*The COP and noise level data was tested in Haier lab.

Our Advantages
1.Wide Range
DHA output temperature from 35°c to 65°c, the working temperature is from -7°c to 45°c, enjoy happy and safe shower for 365 days.2.Energy Saving
Haier focus on energy saving and its heat pump achieve the highest level of A+ in EU, also NF performance is 3 stars.3.High efficiency condenser
Full-divisional super conductive condenser with multiflow circuit, it can reduce the flowing resistance and lower the compressor energy consumption to get higher thermal efficiency. The contact area is bigger and fit seamlessly to the tank, which has faster heating speed.4.UMC Inner Tank
Commercial level UMC tank, exclusive design for water heater, it has longer service life and stable heating performance.·Professional quality: Haier upgraded enamel technology to increase the uniformity and make the high density enamel tank which is
resistant to corrosion, acid, alkali and very durable;·Advanced formula: taking use of high quality enamel powder (made in USA) and upgrade the formula to eliminate the pinhole, the granule weight will be lighter and the anti-corrosion performance will be better;·Production technology: the enamel material is melting by super high temperature, the enamel layer will isolate the water and steel plate to prohibit rust and scale. The tank will have longer service life.5.Easy Operation
The user can choose vacation mode which will save cost. The heat pump will not work under vacation mode and it can automatically heat the water to 65°c one day before the vacation ends. This function can sterilize the tank and make sure the user can enjoy healthy water.
Step 1.The refrigerant fluid crosses the evaporator and absorbs the heat from the air drawn in by the fan. This process ensures the refrigerant changes state from a liquid to a gas through evaporation.
Step 2. The compressor pressurises the refrigerant gas, which causes it to increase in temperature.
Step 3.The refrigerant fluid loses further pressure and temperature by passing through the expansion valve causing it to completely return to its original state, It will be working by this recycle.
Step 4. From the condenser, the refrigerant gas transfers its heat to the water, which circulates into the home. This exchange process causes the refrigerant to cool down as it transfers the heat and forces it to return to a partial liquid state.1.Smart defrost
Smart defrost system, lower the energy consumption and increase the working efficiency.
2.Electricity cost saving
Optimized electric control solution, enjoy the low power by PV/HC.
3.Low noise
Patented ventilation structure and high efficiency fan, make sure the user can enjoy a quiet environment.
4.High class tank
Commercial class 3 layer inner tank, more durable and resistant to acid, alkali and corrosion.
5.Professional compressor
Specially designed professional heat pump compressor has service life up to 10 years and very good thermal efficiency.
6.User-friendly
Big touch screen, easy to operate and real-time display.
7.Stable system
Electronic expansion valve control system, more accurate and stable function.
8.Higher efficiency
Patented heat convection technology, full-dimensional micro channel and bottom coil heat exchanger to heat the water by whole tank. The thermal efficiency and DHW output will increase dramatically.Why Choose Us
Certifications
FAQ
Q1. Who are we?A: Established in 1984, Haier is the world's NO.1 major appliance brand. Qingdao Haier New Energy Electric Appliance Co, Ltd, established in June 2013, is a professional engaged in the research, development, sale and service of electric water heater, overseas heat pump, commercial heat pump and GEA water heater etc.Q2. How can we guarantee quality?A: Always a pre-production sample before mass production; Always final Inspection before shipment.Q3. What can you buy from us?A: Heat pump water heater, air source heat pump, swimming pool heat pump, inverter heat pump, EVI heat pumpQ4. Why should you buy from us not from other suppliers?A: Haier is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 40 employees. 4 global R&D centers, superior engineers are in research for 24*7, 11global production base Q5. What services can we provide?A: Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU;
Accepted Payment Currency: USD, EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Arabic, Russian, Korean, Italian
