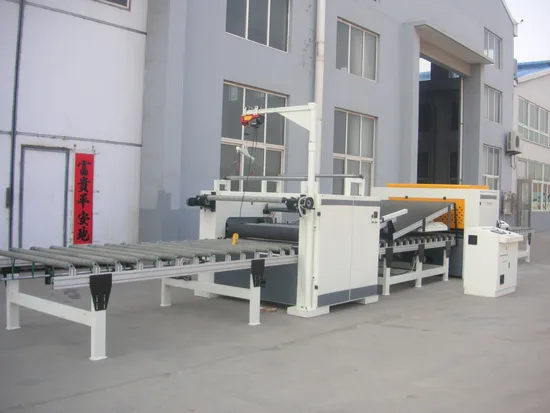

PUR Hotmelt Glue Laminating Press Stick Line Machine

Product Description

PUR Hotmelt Glue Laminating Line Machine

Model	TZ1350B-PUR
Max. panel width	1220mm
Max. feeding speed	15m/min
PUR glue machine	55GALLON(13KW)
Gluing roll diameter	φ240mm
Press roll diameter	φ400mm
Total Power	65 Kw
Overall dimensions	13000×2100×2550mm
Weight	6000kg

Product Application:
This machine is used to laminate high glossy film, acrylic panel, PVC panel, PVC film, paper, PET film, on MDF, plywood, particle board, PVC panel and other panel.
Characteristics:
1.It covers the functions of dust collection, gluing, acrylic feeding shelf and laminating.
2.This machine is special for PUR glue. The glue supply machine is famous brand made in China.(55 gallon)
3. This machine is control by PLC system and touch screen. So it's very easy to operate.
4. The heating of gluing machine is by oil, temperature is adjustable. It can keep the temperature very well; finally keep the best adhesive strength.
5. The Gluing roll is made by special material; there is one stainless steel roll, one silicon roll. It's the best material for PUR glue.
