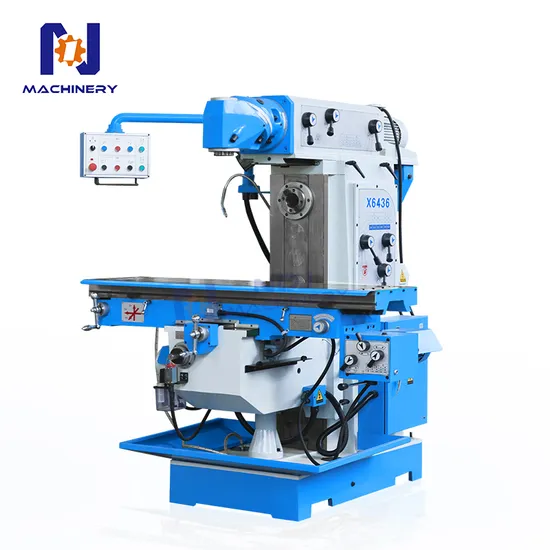

X6436 Universal Rotary Head Milling Machine Multifunctional 360 Degrees Universal Turret Metal Milling Machine

Product Description

Product Description

The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong
steel, gear up for gear grinding ,by high frequency quenching and low noise durable
Certifications

Specifications	Units	X6432	X6436
Table size	mm	1500x320	1500x360
Table travel	mm	1000/320/400	1000/320/450
T-slot numbers / width /space	mm	3-16-60	3-18-80
Spindle taper		ISO40(V) ISO40(H)	ISO40(V) ISO50(H)
Spindle speed range	rpm	48-1660rpm(V) 40-1300(H)	48-1660rpm(V) 40-1300(H))
Distance between spindle nose and table surface	mm	120-520	150-550
Distance between spindleaxis and table surface	mm	0-400	0-400
Range of table feed	mm /min	XY:22-555 Z:electric	XY:22-555 Z:electric
Milling head swivel range	°	360	360
Spindle motor power	kw	3(V)/3(H)	4(H)/4(H)
Feed motor power	kw	1.1	1.1
Weight	kg	2100	2580
Overall dimension	mm	2050x1750x2000	2550x2050x2050

Detailed Photos
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 80,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.





FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
