(Height 36") 16mm (5/8") 375/450/550W Copper/Aluminium Motor Metalworking High Speed Bench Drill Press Drilling Machine Zj4116 Zjq4116 Zjq4116b

Product Description

Product Description
(Height 36") 16mm (5/8") 375/450/550w Copper/Aluminium Motor Metalworking High Speed Bench Drill Press Drilling Machine ZJ4116 ZJQ4116 ZJQ4116B

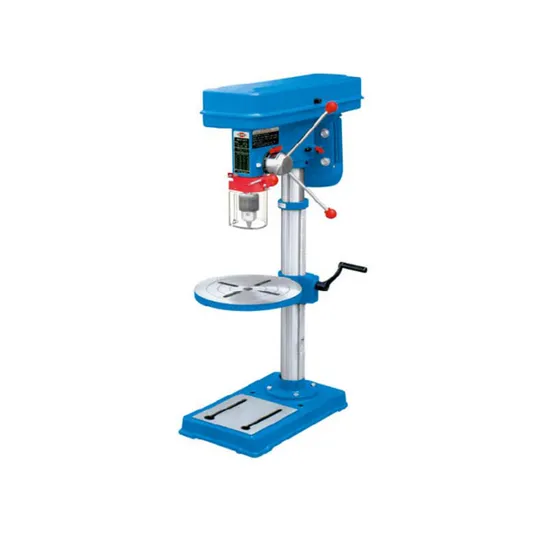

SP5216A-II bench drill press drilling machine belongs to one of our most economic bench drill press drilling machine. It is new condition not used bench drill press drilling machine. And it is small in size and delicate in design. This bench drill press drilling machine is made in China, but it has similar quality as Japan drill press. The main features are as below:1. Keyed safety switch prevents accidental starting2.12-speed settings to accommodate various materials and thicknesses3.420 X 250mm cast iron worktable, height adjustable4. Rack and Pinion table elevation makes adjusting the table height easy and accurateScaled steel fence helps align, guide and brace work pieces, stop block for repetitive drilling jobs
Product Parameters

Model	SP5216A-I
Drilling capacity	Ø16mm(5/8")
Motor power	375/450/550W
Chuck Capacity	3-16mm
Spindle stroke	60mm
Class Of Speed	5
Speed 50/60Hz	620~2620/740~3140 R.P.M
Spindle taper	B16
Auto-feeding step of worktable	130mm
Max.distance from spindle end to surface of table	400mm
Max.distance from spindle end to surface of base	515mm
Swing	260mm
Table size	190X190mm
Base Size	340X210mm
Column Diameter	Ø58mm
Height	840mm
N.W./G.W.	28/30kg
Packing size	680X430X265mm
