OEM High Pressure Heavy Duty Adjustable Pipe 201 304 Stainless Steel American Type Hose Clamp

Product Description

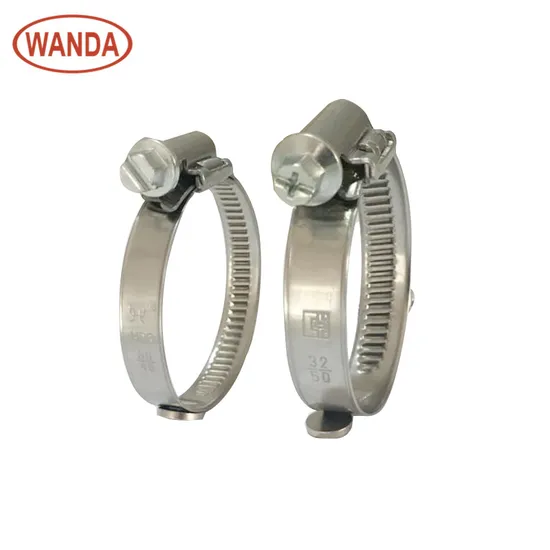

Product Description Torro Style Hose Clamp
DIN3017 Standard, Worm Drive Clamps Non-Perforated Band: 9mm wide, 0.60-0.65mm thick Torro Clamps can be installed with a socket, wrench or screwdriver. The housing design prevents tilting during tightening, providing superior high force torque and evenly distributing clamping pressure. Torro clamps set the highest quality standard for European OEM auto brands: Porsche, Mercedes, Audi, VW
Screw: 7mm Hex Head

Clamping Range	P/N				PCS/BAG	PCS/CTN
mm	W1	W2	W4	W5	pcs/bag	pcs/carton
8-12	9TWD812W1	9TWD812W2	9TWD812W4	9TWD812W5	100	1000
10-16	9TWD1016W1	9TWD1016W2	9TWD1016W4	9TWD1016W5	100	1000
12-22	9TWD1222W1	9TWD1222W2	9TWD1222W4	9TWD1222W5	100	1000
16-27	9TWD1627W1	9TWD1627W2	9TWD1627W4	9TWD1627W5	100	1000
20-32	9TWD2032W1	9TWD2032W2	9TWD2032W4	9TWD2032W5	50	1000
25-40	9TWD2540W1	9TWD2540W2	9TWD2540W4	9TWD2540W5	50	500
30-45	9TWD3045W1	9TWD3045W2	9TWD3045W4	9TWD3045W5	50	500
35-50	9TWD3550W1	9TWD3550W2	9TWD3550W4	9TWD3550W5	50	500
40-60	9TWD4060W1	9TWD4060W2	9TWD4060W4	9TWD4060W5	50	500
50-70	9TWD5070W1	9TWD5070W2	9TWD5070W4	9TWD5070W5	50	500
60-80	9TWD6080W1	9TWD6080W2	9TWD6080W4	9TWD6080W5	10	500
70-90	9TWD7090W1	9TWD7090W2	9TWD7090W4	9TWD7090W5	10	500
80-100	9TWD80100W1	9TWD80100W2	9TWD80100W4	9TWD80100W5	10	250
90-110	9TWD90110W1	9TWD90110W2	9TWD90110W4	9TWD90110W5	10	250
100-120	9TWD100120W1	9TWD100120W2	9TWD100120W4	9TWD100120W5	10	250
110-130	9TWD110130W1	9TWD110130W2	9TWD110130W4	9TWD110130W5	10	250
120-140	9TWD120140W1	9TWD120140W2	9TWD120140W4	9TWD120140W5	10	250
130-150	9TWD130150W1	9TWD130150W2	9TWD130150W4	9TWD130150W5	10	250
140-160	9TWD140160W1	9TWD140160W2	9TWD140160W4	9TWD140160W5	10	200

Material	Band	Housing	Screw	Suggested Instal Torque
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel	3.0N.m
W2	AISI 430SS/203SS	AISI 430SS/203SS	Zinc plated steel	3.0N.m--3.50N.m
W4	AISI 301SS/304SS	AISI 301SS/304SS	AISI 301SS/304SS
W5	AlSI 316SS	AISI 316SS	AISI316SS

Stainless steel material: Our throat clamp is made of high-quality stainless steel, which has excellent corrosion resistance and oxidation resistance. Stainless steel materials enable products to have a long-term service life and maintain their performance in humid, corrosive, or high-temperature environments.
Strength and stability: Our stainless steel throat clamps have undergone precise design and processing to ensure their strength and stability. They can firmly fix pipelines, prevent leakage and displacement, and ensure the safety and reliability of the system.
Click this link to view more products!
Company Profile We can fully understand the requirements of our customer and pay much more attention to every details of products, including Products' Standard( SAE J1508, DIN 3017 and Others), Chemical Composition of Materials, Stamping of Logo & Size, Torque and Packaging. So we can save you a lot of time, energy and money from the moment you determine to have cooperate with us.
Also we can create PPAP files when your customer need it.
We did, do and will serve our customers with high quality clamps and rigging. Certifications
Exhibition & Customers
Packaging & Shipping FAQ Q1:Are you a factory or trading company ?
A1 : We are a factory which produced all kinds of hose clamps for 20 years .
Q2: Who are we?
A2:Wanda Industrial Supply Limited is a China qualified manufacturer of many styles of standard stainless steel worm drive hose clamps. GE is one of our big buyers. All our customers with 100% repeat order rate.
Q3:Do you provide samples for free?
A3: Yes . We can provide free samples
Q4:How can we guarantee quality?
A4:Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q5:Why should you buy from us not from other suppliers?
A5:Familiar with many domestic manufacturers, years of trade export experience, and keen market ability
