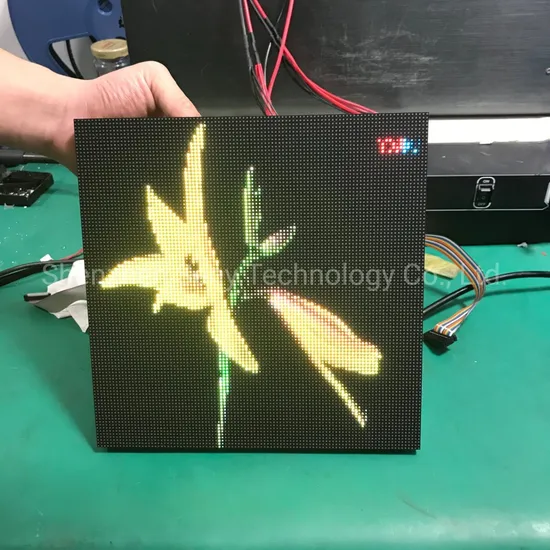

P2.604mm Internal Full Color High Refresh RGB 96X96 LED Matrix Video Advertising Display Module
| US$21.00-35.00 | 200 Pieces (MOQ) |
Basic Info.
Model NO.
P2.604mm
Pixel Pitch
2.604mm
Pixel Configuration
1R,1G,1B
Pixel Density
147456 Dots/M2
Scanning Mode
1/28 Scan
System Operating Platform
Computer
Display Type
LED Video Display
Application
Stage Performance, Advertising, Shopping Guide
IP Rating
IP20
Certification
CE, RoHS, CCC, FCC, ISO9001
Module Size
250mm*250mm
Module Pixel
96*96 Pixel Dots
Refresh Frequency
1920Hz - 3840Hz
Control Mode
Synchronous Display with Control PC by DVI
Control System
Novastar, or as Required.
Display Content
Video, Picture, Cartoon, Graphics, Texts.etc.
with Video Processor
Video,VGA,HDMI,DVI,SDI/HD-SDI/3G-SDI
Transport Package
Paper Carton
Specification
CE, RoHS, FCC
Trademark
SENY
Origin
Shenzhen, Guangdong, China
HS Code
8528591090
Production Capacity
1000000
Packaging & Delivery
Package Size
68.70cm * 30.20cm * 30.50cm
Package Gross Weight
15.000kg
Product Description
P2.604mm Internal Full Color High Refresh RGB 96X96 LED Matrix Video Advertising Display ModuleFeatures:
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA( with processor )
Technical Parameter:
| Item Name | Technical Parameter | ||
| LED Parameter | |||
| Item Name | LED Type | ||
| Red LED | SMD3in1 | ||
| Green LED | SMD3in1 | ||
| Blue LED | SMD3in1 | ||
| Module Parameter | |||
| Pixel Pitch | 2.604mm | ||
| Pixel Configuration | 1R1G1B | ||
| Module Resolution | 96 x 96 pixels | ||
| Module Pixles | 9216 pixels | ||
| Module Size | 250mm x 250mm | ||
| Whole Screen Parameter | |||
| Screen Brightness | 800cd/m2 | ||
| Driving Method | 1/28 scan, constant current driving | ||
| Min. Viewing Distance | 2m | ||
| Max. Power Consumption | ≤ 800W/m2 | ||
| Ave. Power Consumption | ≤ 400W/m2 | ||
| Gray Levels | 14 bits | ||
| Frame Frequency | ≥60Hz | ||
| Refresh Frequency | 3840Hz | ||
| LED Life-span | ≥100,000 hours | ||
| MTBF | ≥5,000 hours | ||
| Discrete Blind Spot Rate | <1/10000 | ||
| Continuous Blind Spot Rate | None | ||
| Blind Spot Rate | <1/10000 | ||
| Protective Scale | IP20, for indoor use | ||
| Screen Plainness | <±1mm | ||
| Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz | ||
| Working Temperature | Temperature: 0 Celsius~+40 Celsius | ||
| Storage Temperature | Temperature:-30 Celsius~+50 Celsius | ||
| Humidity | Humidity:10%~90% RH | ||
| Control Mode | Synchronous display with control PC by DVI | ||
| Control System | Novastar, or as required. | ||
| Display Content | Video, picture, cartoon, graphics, texts.etc. | ||
| Interface | Standard Ethernet | ||
| Transmission Distance | Multi mode fiber <500m, single mode fiber <20km,internet cable <100m | ||
| With Video Processor | Video,VGA,HDMI,DVI,SDI/HD-SDI/3G-SDI | ||
Applications:
Connection
Production Process:
Certification:
Packaging and Shipping:
Our Services:
1) Your inquiry related to our products or price will be replied in 24hrs.
2) OEM & ODM,any your customized lightings we can help you to design and put into product.
3) Distributoership are offered for your unique design and some our current models.
4) Protection of your sales area,ideas of design and all your private information.
5) Top Quality + Reasonable Price + Responsible After Service = Successful & Win.
